X-Type (X400) V6-3.0L (2002)

Page 1
background image

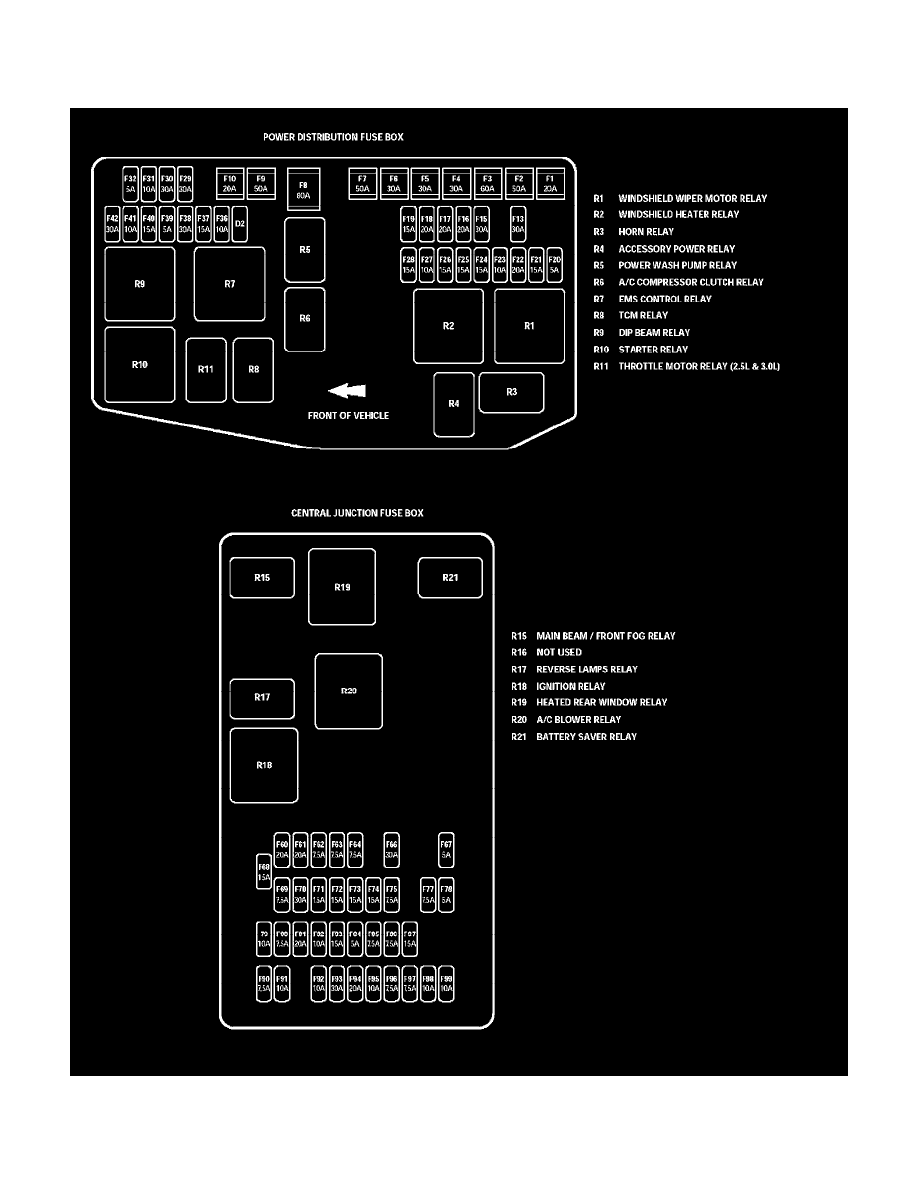

Transmission Control System Relay: Locations

Relay and Fuse Location
