X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-887006.png)

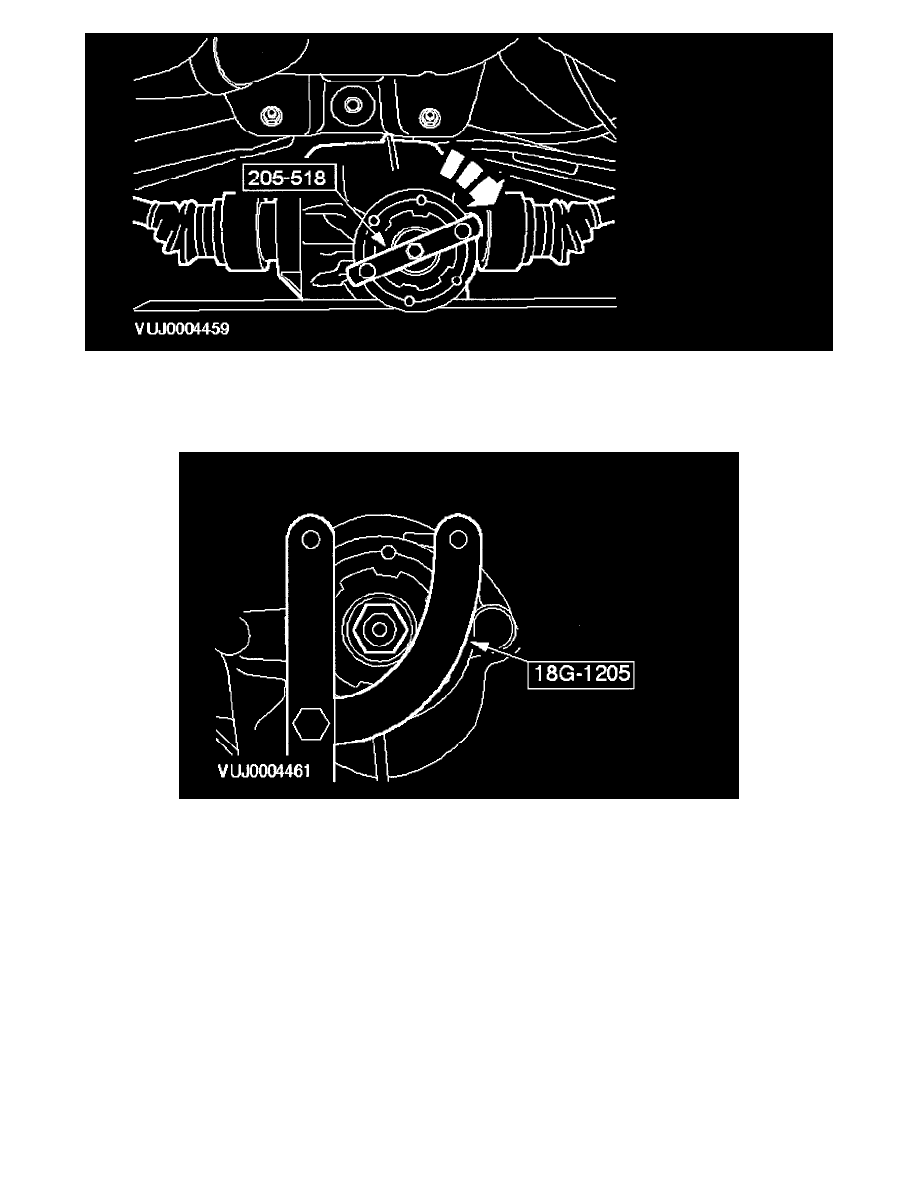

10. Install the special tool to the drive pinion flange.
11. Install a Nm (inch/pound) torque wrench on the special tool and record the torque necessary to maintain rotation of the drive pinion gear through
several revolutions.
12. Using the special tool, install a breaker bar and remove and discard the drive pinion flange retaining nut.
