Flex Plate: Service and Repair
Removal
1. Remove the automatic transmission.
2. NOTE: Prevent the flexplate from rotating.

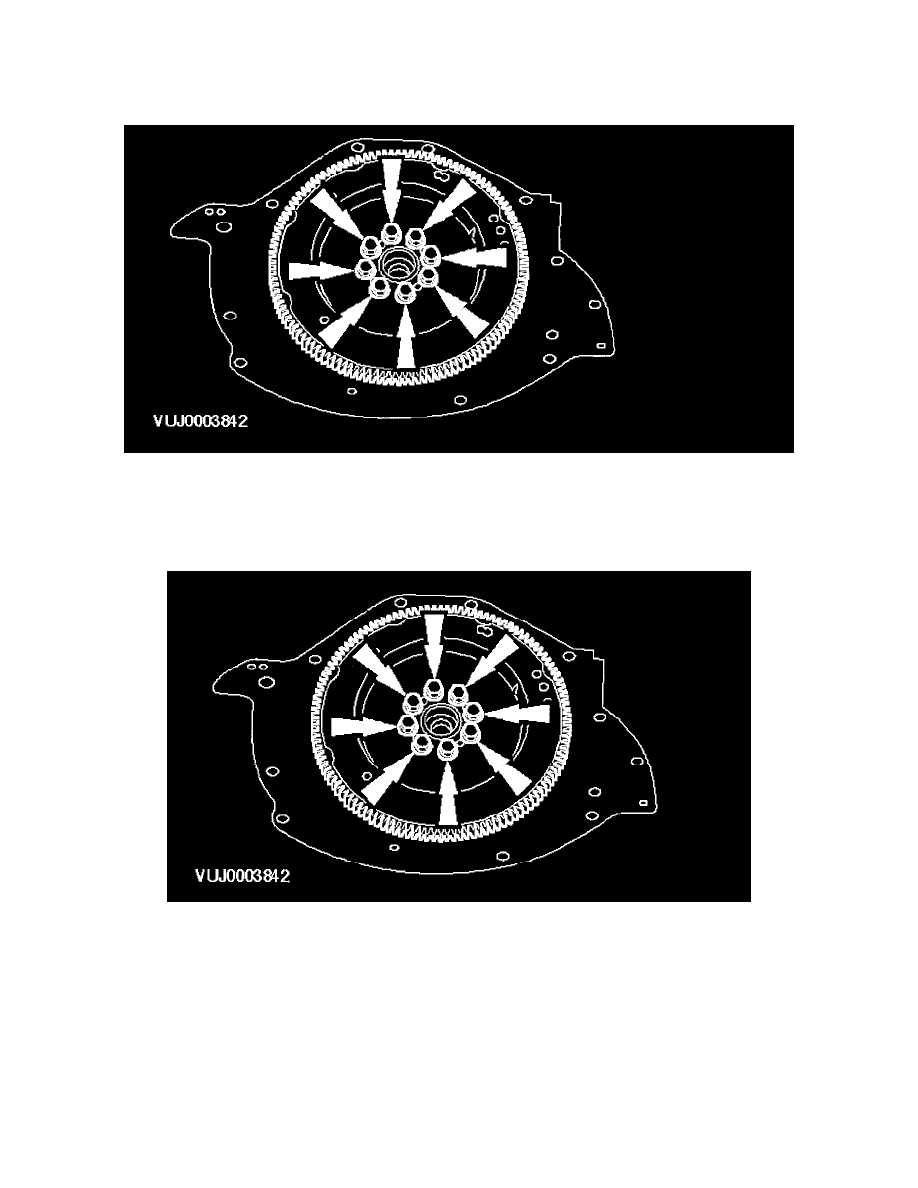

Remove the flexplate.
Installation
1. NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.
NOTE: The flexplate will only locate in one position.
NOTE: Tighten the retaining bolts working diagonally.
Install the flexplate.
-
Prevent the flexplate from rotating.
-
Tighten to 80 Nm.
2. Install the automatic transmission.
