X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-947013.png)

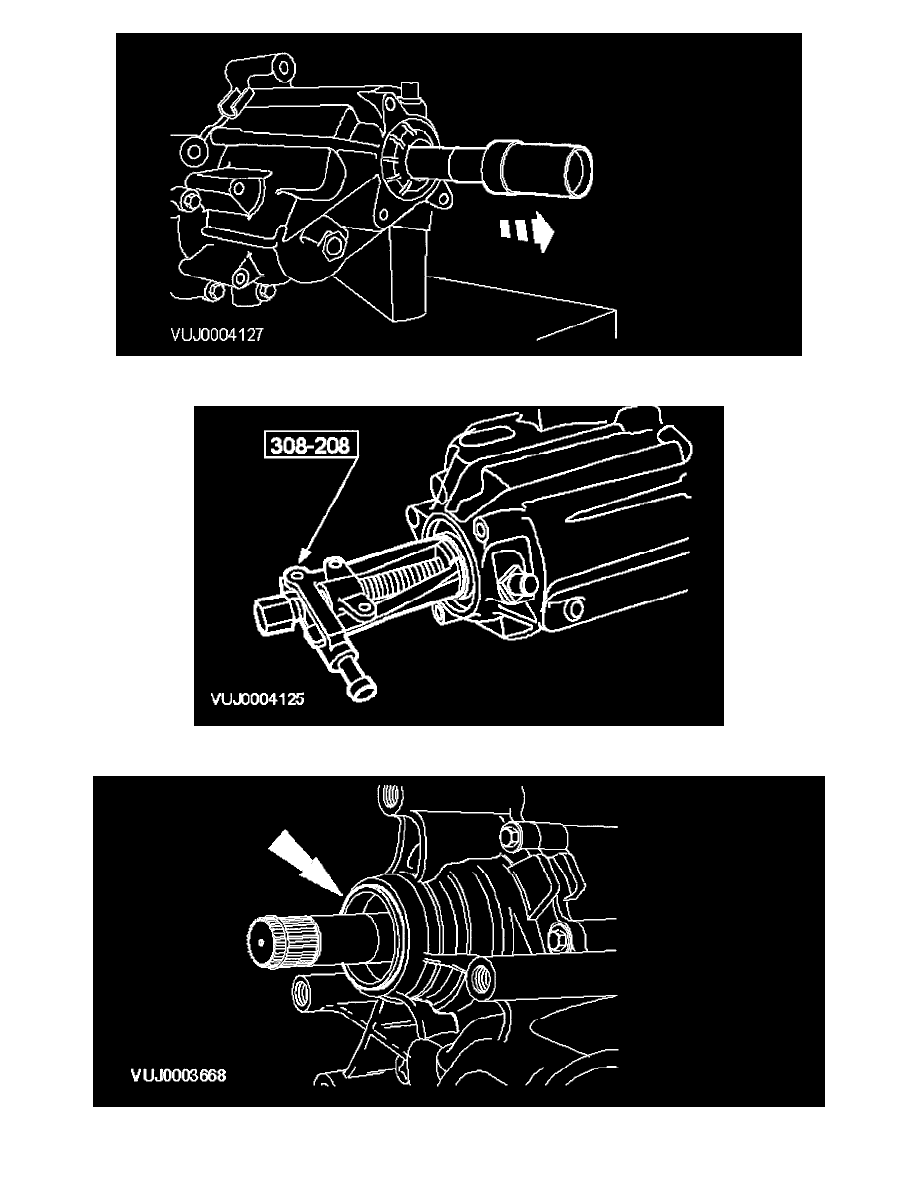

21. Remove the link shaft from the transfer case.
22. Using the special tool, remove the link shaft oil seal.
23. Remove and discard O-ring seal.
