X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1821002.png)

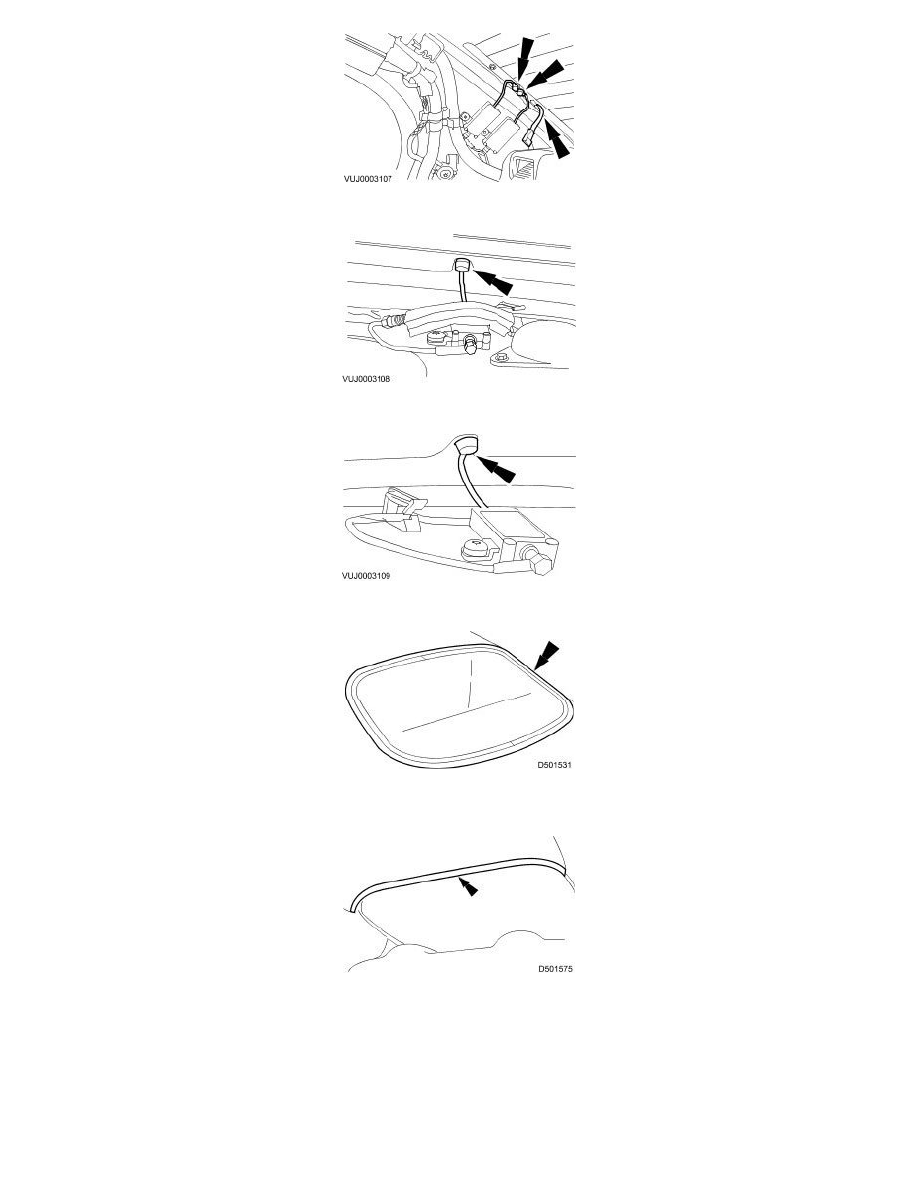

7. Disconnect the electrical connector.
8. Disconnect the electrical connector.
9. Apply suitable protective tape around the windshield glass aperture.
10. Place a protective sheet over the parcel shelf and place a protective board over the sheet.
11. Apply suitable protective tape to inner edge of the roof panel.
12. Prepare the cheese wire and the cutting handle.
-
Position the cutting handle central tube fully upwards in the handle.
-
Cut a suitable length of cheese wire and pass one end through the handle tube and the locating aperture.
-
Move the cutting handle central tube downwards to secure the cheese wire.
13. Using a suitable long bladed tool, penetrate the windshield glass adhesive.
