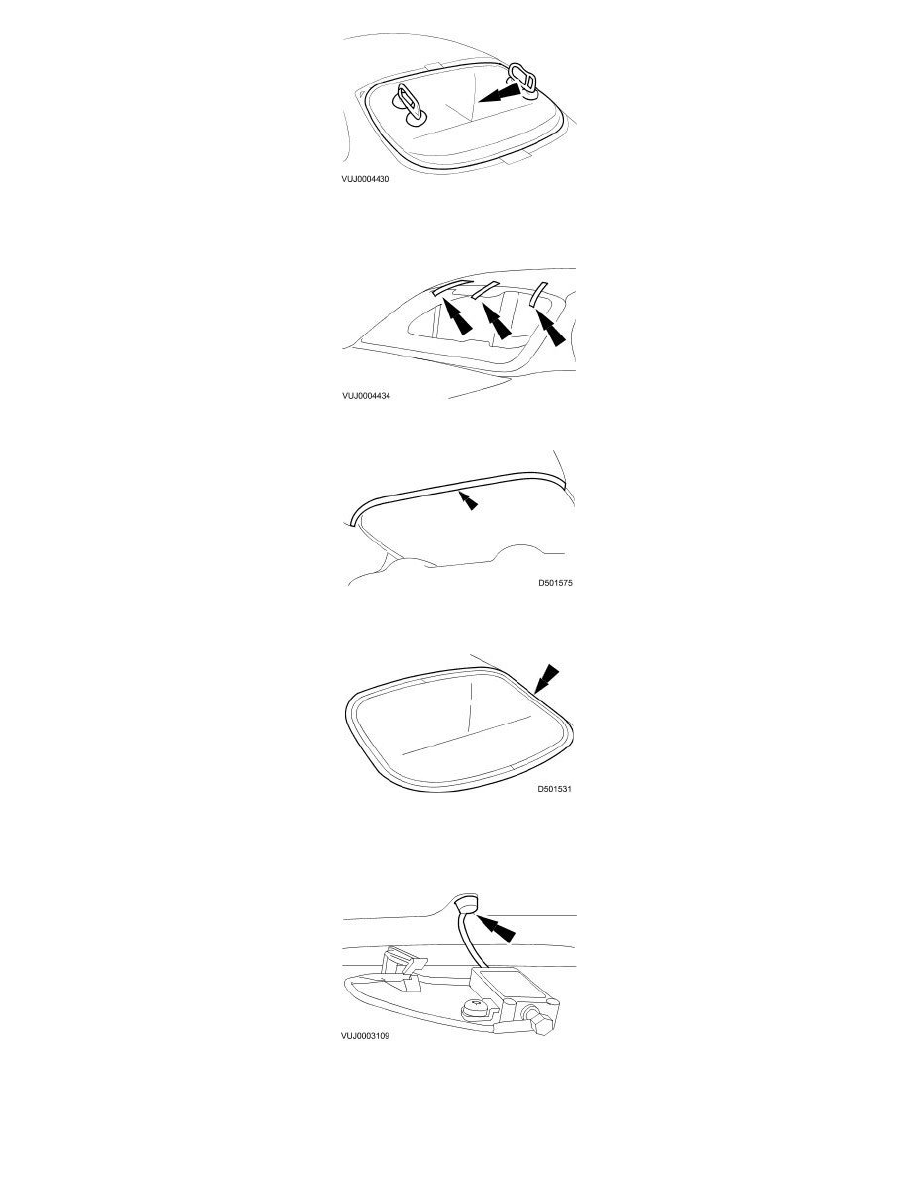

7. CAUTION: Make sure the windshield glass does not move out of position in the windshield glass aperture.
Apply suitable protective tape to the top of the windshield glass.
8. Remove the tape from the inner edge of the roof panel.
9. Remove the protective sheet and the protective board from the parcel shelf.
10. Remove the protective tape from around the windshield glass aperture.
11. CAUTION: Do not connect the electrical connector for at least 1 hour after installation of the windshield glass. Failure to follow these
instructions may result in damage to the windshield glass adhesive.
Connect the electrical connector.
12. CAUTION: Do not connect the electrical connector for at least 1 hour after installation of the windshield glass. Failure to follow these
instructions may result in damage to the windshield glass adhesive.
Connect the electrical connector.
