X-Type (X400) V6-3.0L (2002)

Page 3
background image

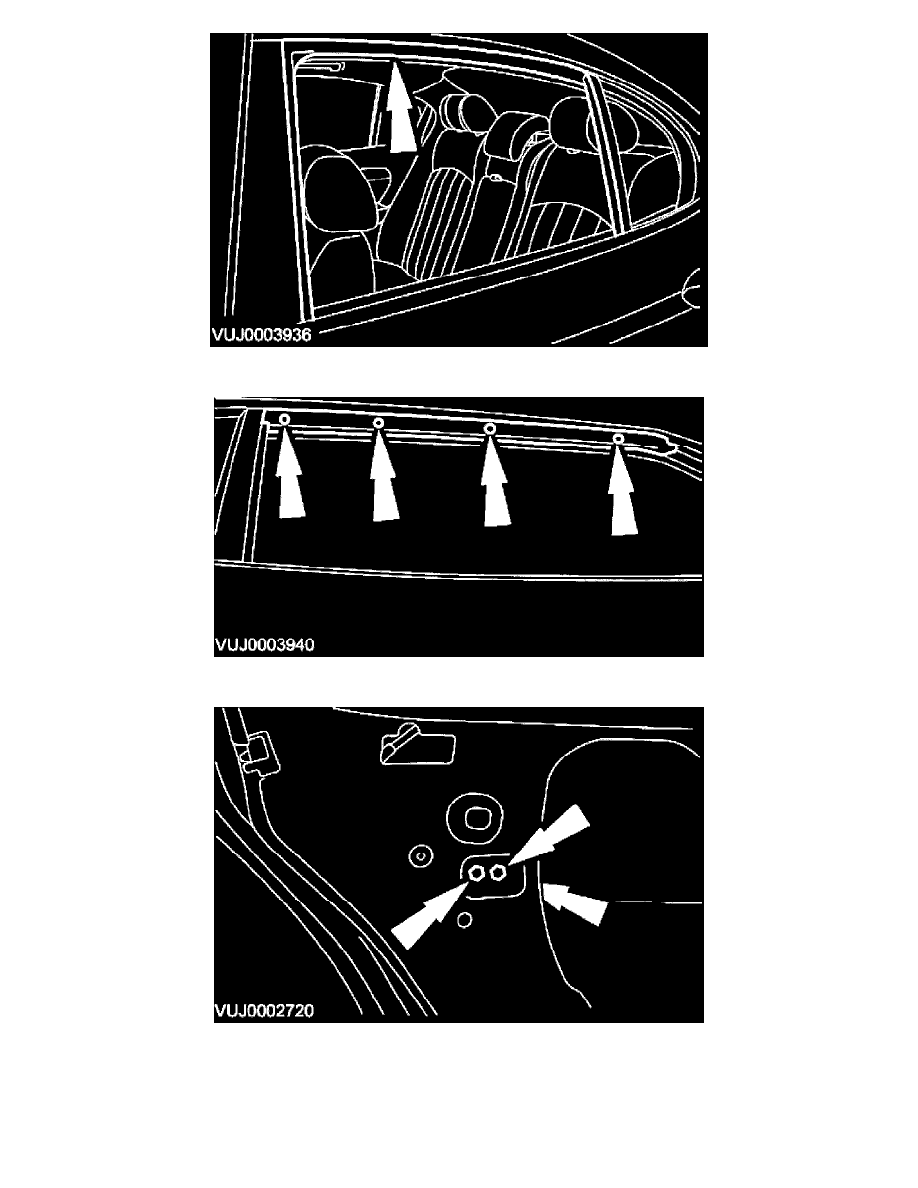

6. Detach the window glass aperture seal.

7. Remove and discard the rivets.

8. Detach the rear quarter window glass guide rail retaining bracket.
