X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1846001.png)
Rear Door Window Regulator: Procedures
Rear Door Window Regulator
Rear Door Window Regulator
Removal

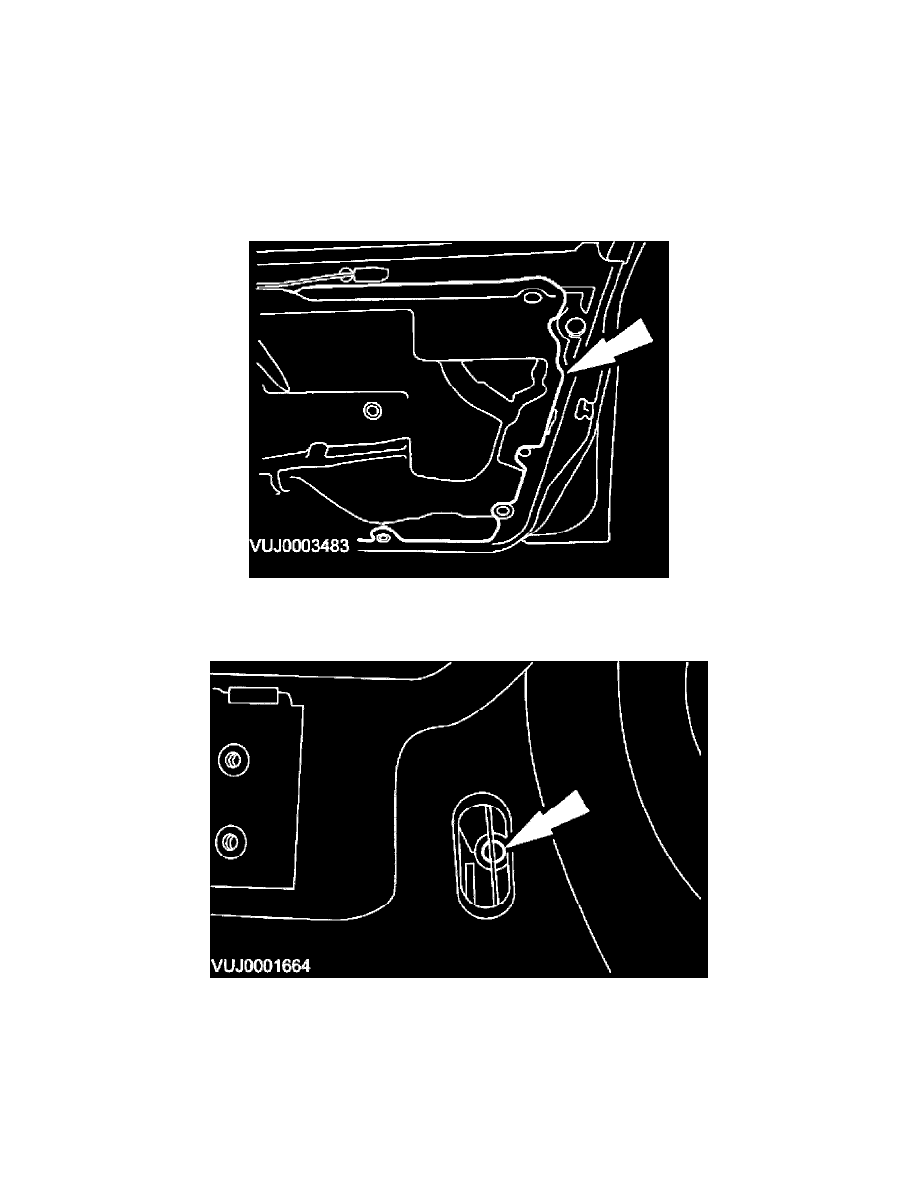

1. Remove the door trim panel.
2. Remove the rear speaker.
3. CAUTION: Do not touch the adhesive surface as rebonding will be impaired
Peel back the weathershield.
4. Lower the door window glass until the pin is visible in the access hole.
