X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1881001.png)
Wiper Arm: Service and Repair

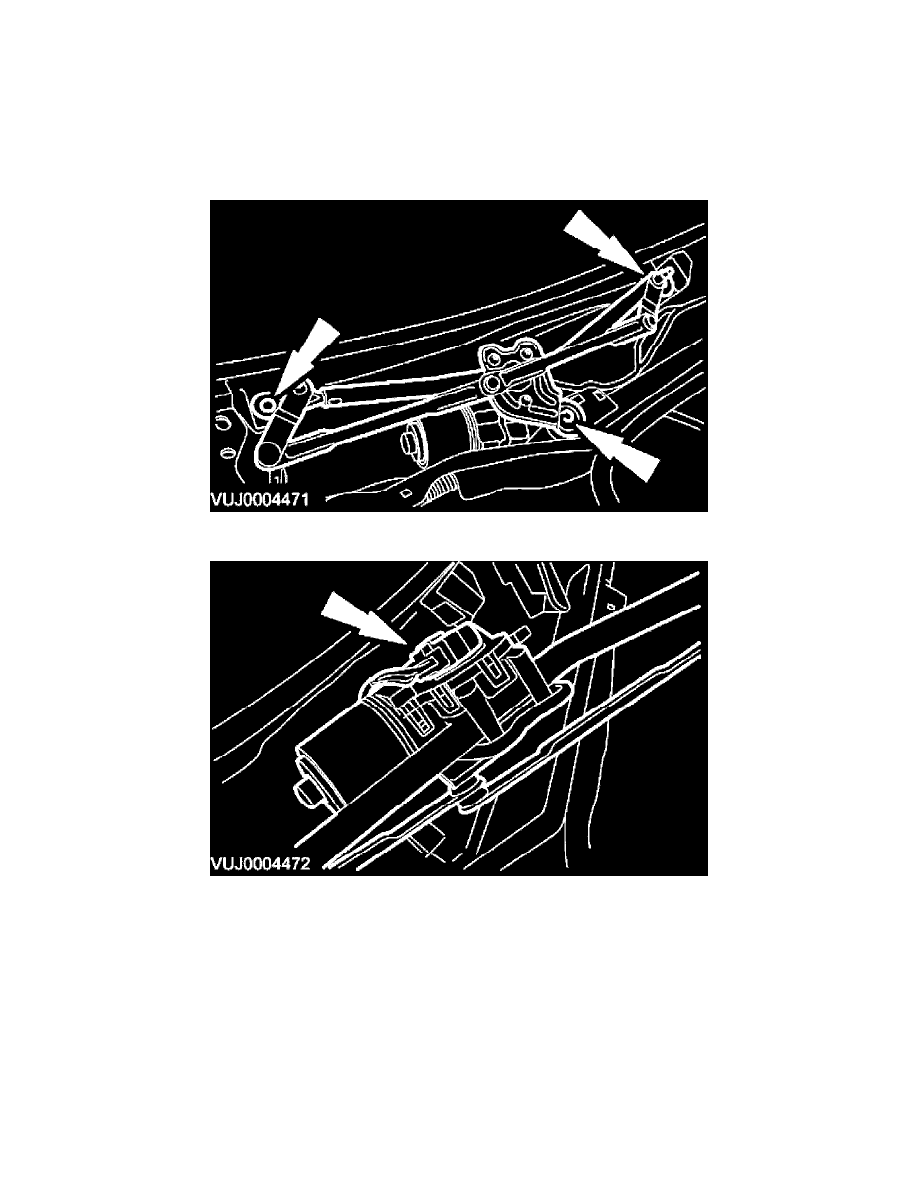

Wiper Mounting Arm and Pivot Shaft
Wiper Mounting Arm and Pivot Shaft
Removal
1. Remove the plenum cover.
2. Detach the mounting arm and pivot shaft assembly.
3. Remove the mounting arm and pivot shaft assembly.
Installation
