Wiper Motor Linkage: Service and Repair
Removal
1. Remove the plenum cover. See: Body and Frame/Cabin Ventilation Grille/Service and Repair

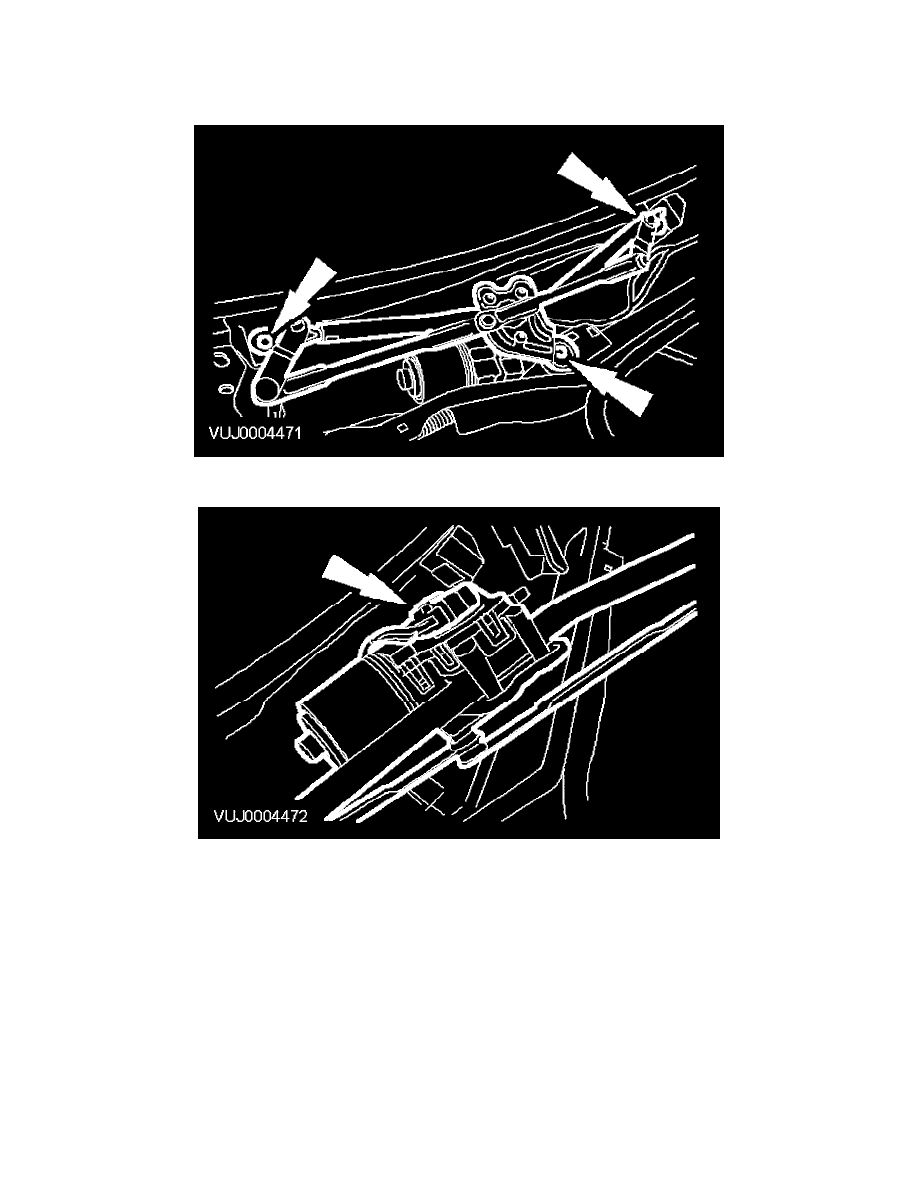

2. Detach the mounting arm and pivot shaft assembly.
3. Remove the mounting arm and pivot shaft assembly.
Installation
