XF (X250) V8-4.2L (2009)
Headliner: All Technical Service Bulletins
Interior - Rattle From Headliner At Sunroof Opening
No: JTB00209
Issue: 1
Date: 16 DEC 2010
SECTION: 501
Headliner Rattle From Roof Opening Panel Aperture
AFFECTED VEHICLE RANGE:
XF (X250)
VIN: R000001-R87967
Model Year: 2009 - 2010
CONDITION SUMMARY:
Situation:
A rattle noise may be heard from the headliner at the roof opening panel area. This may be caused by freeplay in the headliner clipping feature.
Action:
In the event of a customer concern of the above refer to the Repair Procedure outlined below to replace the headliner clips and install foam pads.
PARTS:
C2D7817
Foam block
Qty: 1
C2Z11576
Headliner clip
Qty: 2
TOOLS:
Refer to Workshop Manual for any required special tools

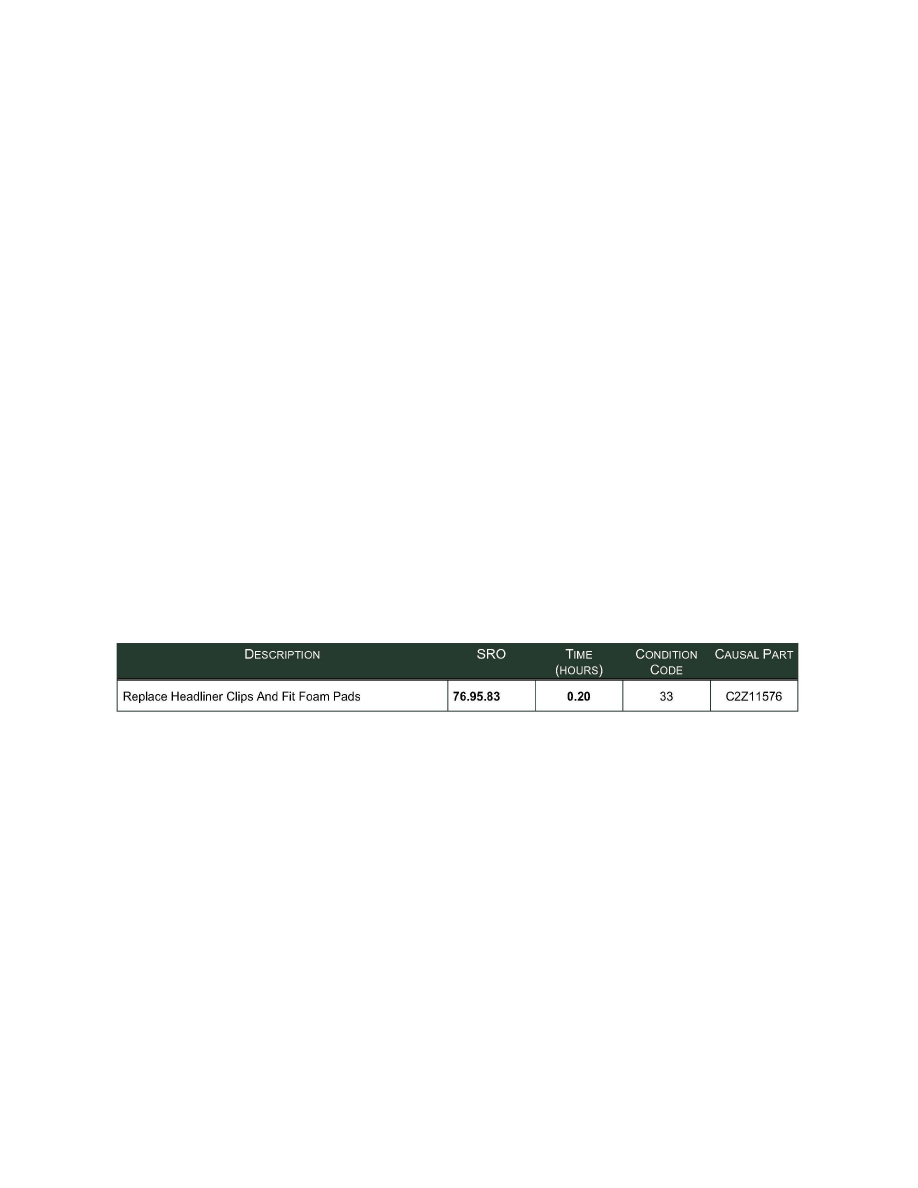

WARRANTY:
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only.
Always refer to DDW to obtain the latest repair time.
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
Normal Warranty policies and procedures apply
REPAIR PROCEDURE
INSTALL FOAM PADS; REPLACE HEADLINER CLIPS
CAUTION:
Use care to not bend or damage the headliner.
