XJ-8 Sedan (X308) V8-4.0L (AJ27) (1999)
/v8-4.0l_(aj27)/Page-1106001.png)
Control Assembly: Service and Repair
Air Conditioning Panel
AIR CONDITIONING PANEL
Removal
1. Move 'J' gate selector to position 'D'.
2. Remove battery cover and disconnect ground cable from battery terminal.
3. Remove 'J' gate finisher. See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair
4. Remove 'J' gate finisher retaining plate. See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair
5. Remove centre console veneer panel. See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair
6. Remove radio and console. See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair

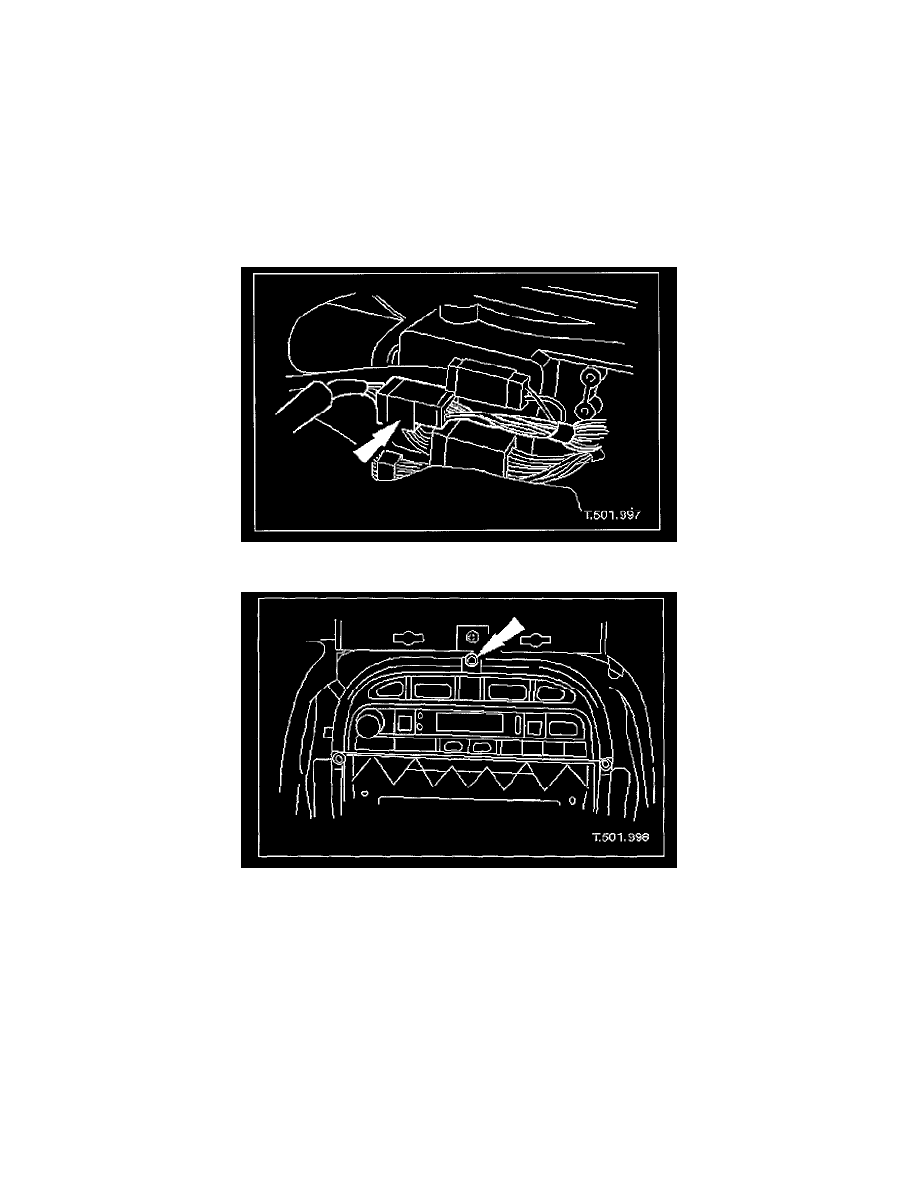

7. Disconnect air conditioning panel flying lead multiplug (blue) in LH side of transmission tunnel.
8. Slacken and remove remaining screw securing air conditioning panel console to BIW.
