XJ-8 Sedan (X308) V8-4.0L (AJ27) (1999)
/v8-4.0l_(aj27)/Page-70001.png)
Power Seat Switch: Service and Repair

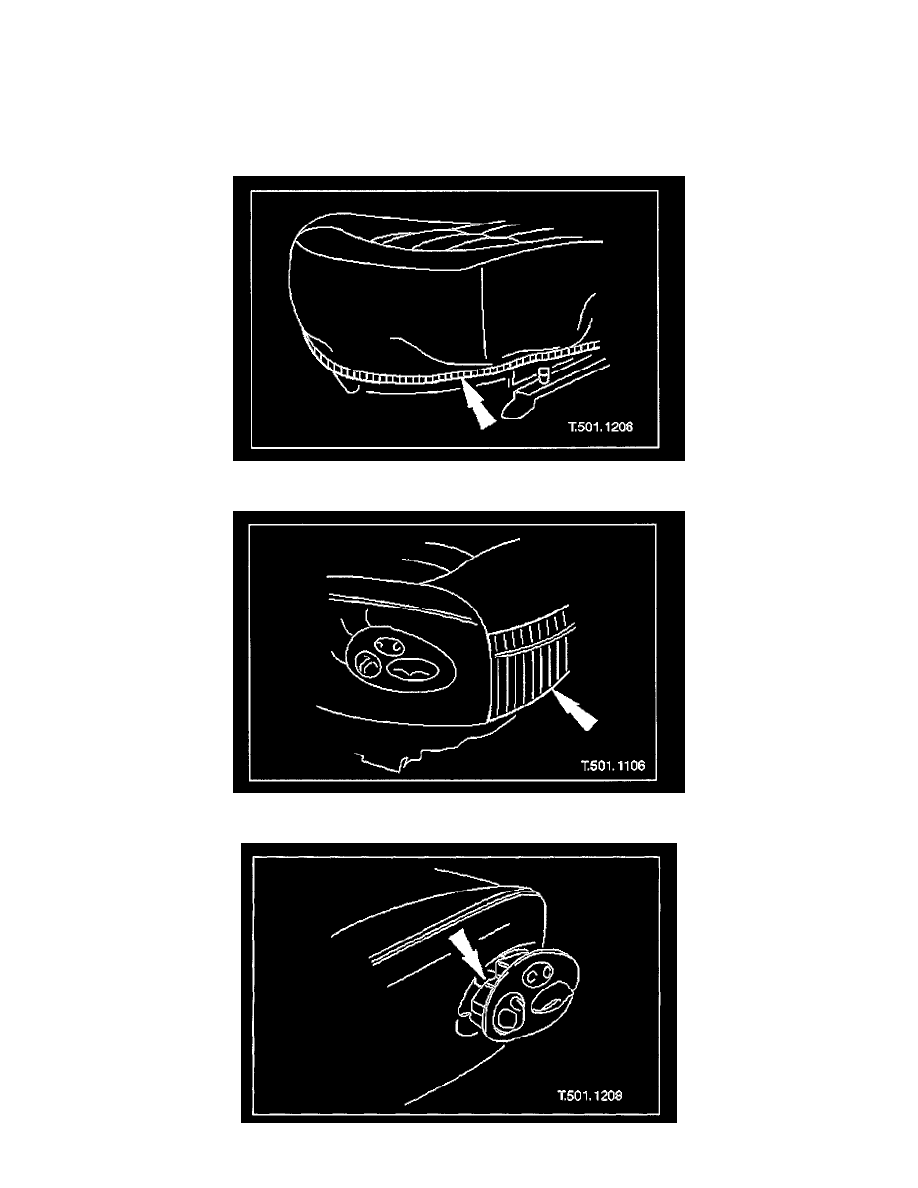

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. See: Starting and Charging/Battery/Battery Cable/Negative/Service and
Repair
2. Remove front seat for access. See: Body and Frame/Seats/Service and Repair
3. Place seat inverted on clean working surface for access to underside.
4. Release cushion cover retaining strip from edge of seat frame.
5. Release cushion cover front elastic retaining straps from seat frame.
