XJ-8 Sedan (X308) V8-4.0L (AJ27) (1999)
/v8-4.0l_(aj27)/Page-909001.png)

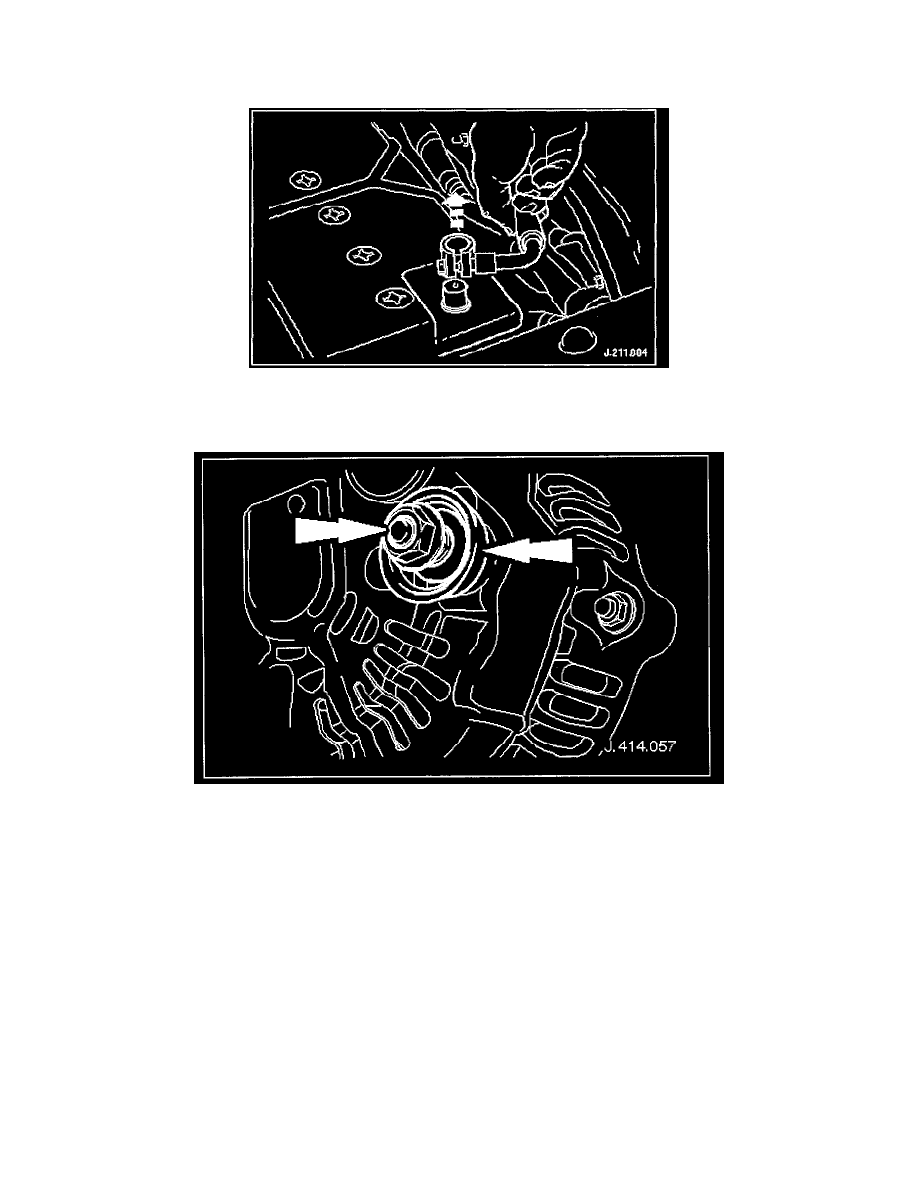

Voltage Regulator: Service and Repair
Removal, Regulator (Nippon Denso Generator)
1. Disconnect the battery ground cable.
Remove the battery cover.
2. Remove the generator from the vehicle. See: Generator/Service and Repair
3. Remove the nut from the main terminal and remove the insulator.
