XJ-8 Sedan (X308) V8-4.0L (AJ27) (1999)

Page 1
background image

Vertical Link: Service and Repair
Vertical Link and Hub Assembly

Vertical link and hub assembly

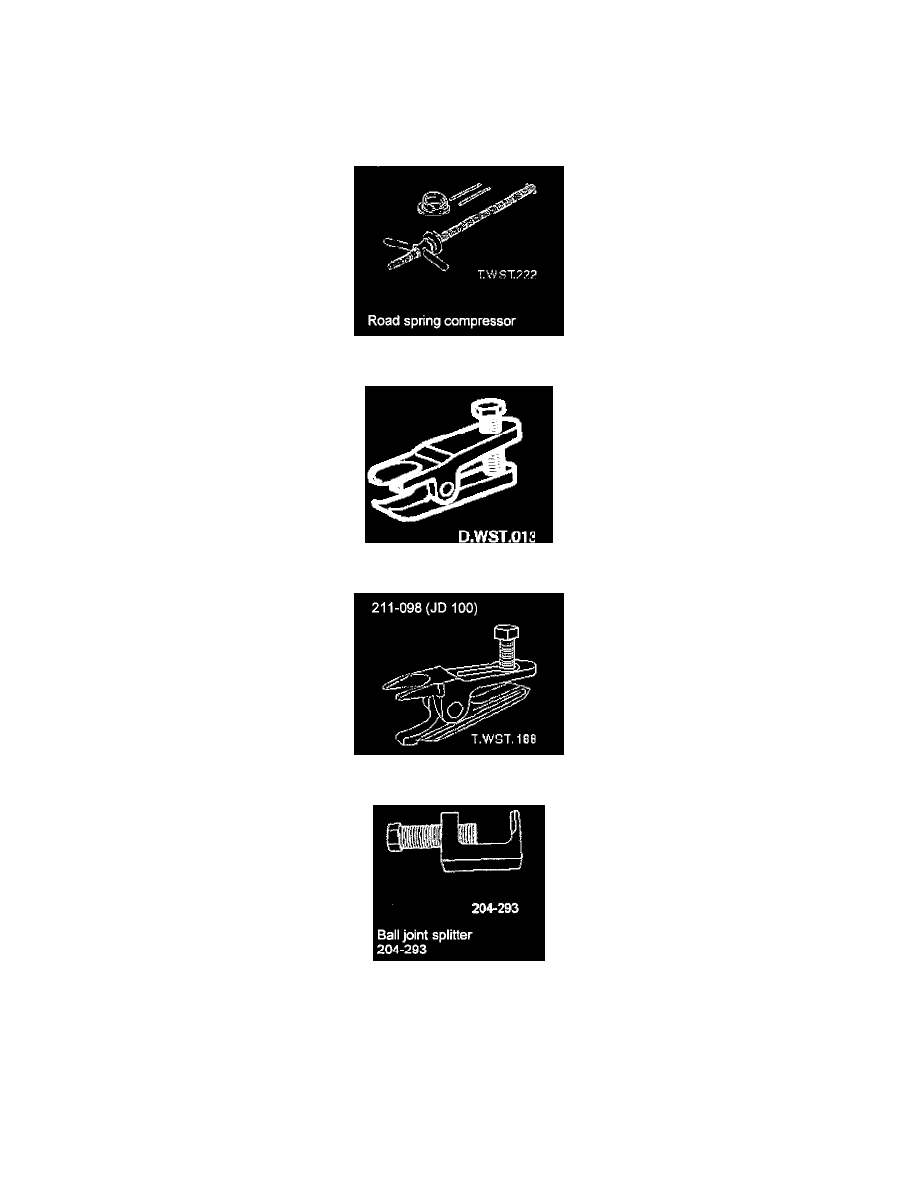

Special Service Tools

Road Spring Compressor 204-111 (JD 115)

Taper Separator 211-098 (JD 100)

Front Suspension Ball Joint Splitter 204-192 (JD 219)

Ball Joint Splitter 204-293

Removal

1. Raise front of vehicle and support on stands.
2. Remove appropriate road wheel.
3. Remove brake disc.

Refer to Brakes and Traction Control - Disc Brake System - Brake Rotor/Disc - Service and Repair - Procedures  See: Brakes and Traction
Control/Disc Brake System/Brake Rotor/Disc/Service and Repair
