XJ (X350) V8-4.2L (2005)
/v8-4.2l/Page-1537001.png)
Front Fender Liner: Service and Repair
Fender Splash Shield
Removal
1. Remove the front wheel and tire assembly.

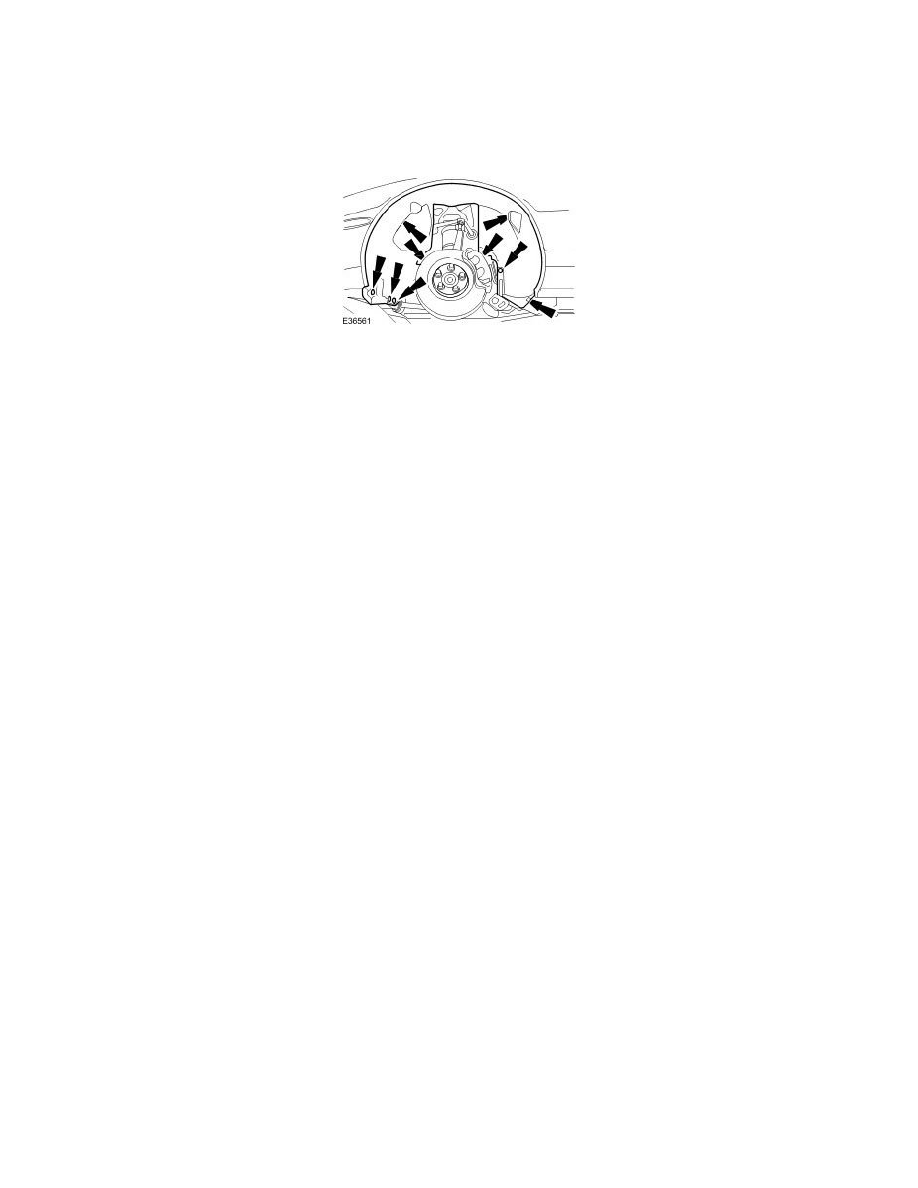

2. Remove the fender splash shield.
Installation
1. To install, reverse the removal procedure.
