XJ (X350) V8-4.2L (2005)
![background image](/jaguar/xj_(x350)/v8-4.2l/Page-1573001.png)
Power Door Lock Actuator: Service and Repair
Front Door Lock Actuator
Front Door Lock Actuator

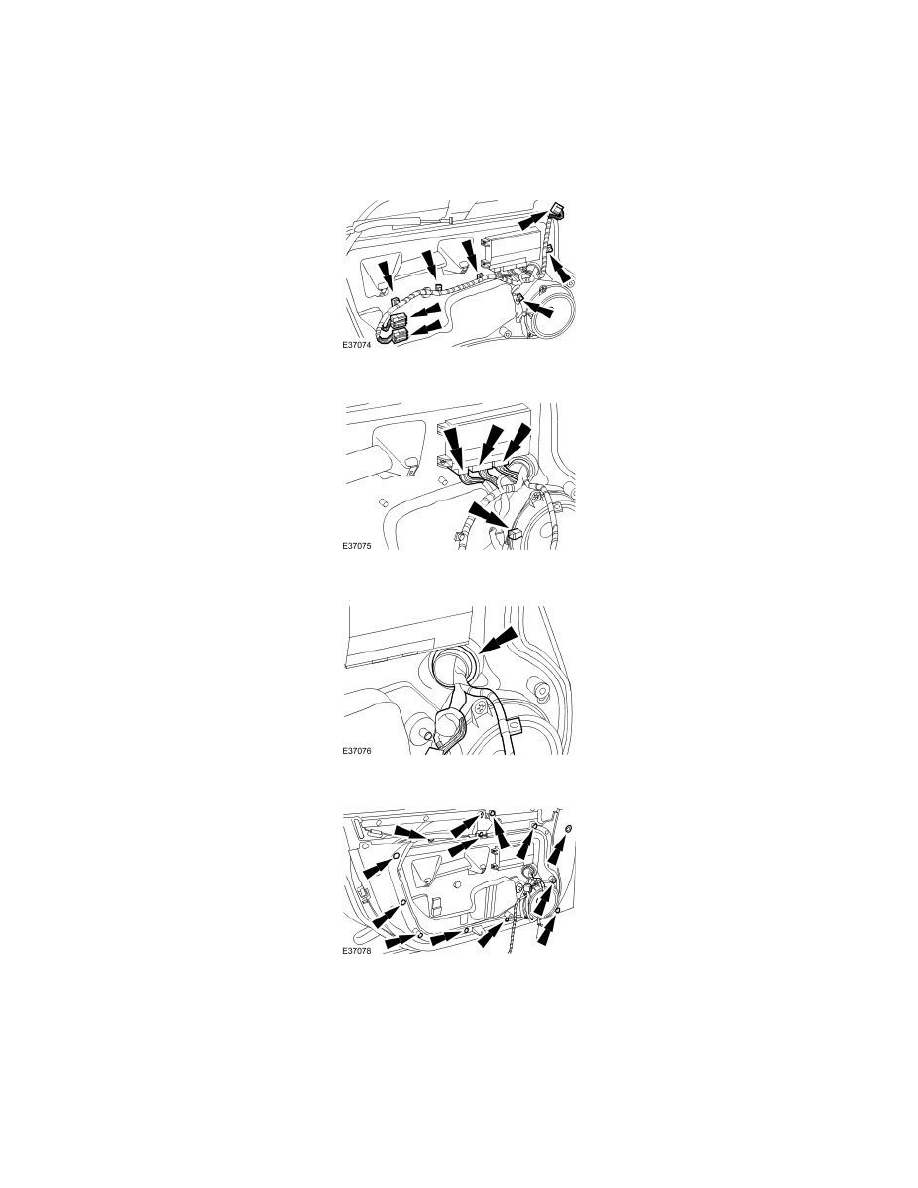

Removal
1. Remove the front door trim panel.
2. Detach the door wiring harness.
3. Disconnect the electrical connectors.
4. Detach the door wiring harness grommet.
5. Remove the door inner weathershield.
6. Remove the front door lower security shield.
