XJ (X350) V8-4.2L (2005)
Windshield Washer Pump: Service and Repair
Windshield Washer Pump - VIN Range: G00442->G45703
Windshield Washer Pump - VIN Range: G00442->G45703

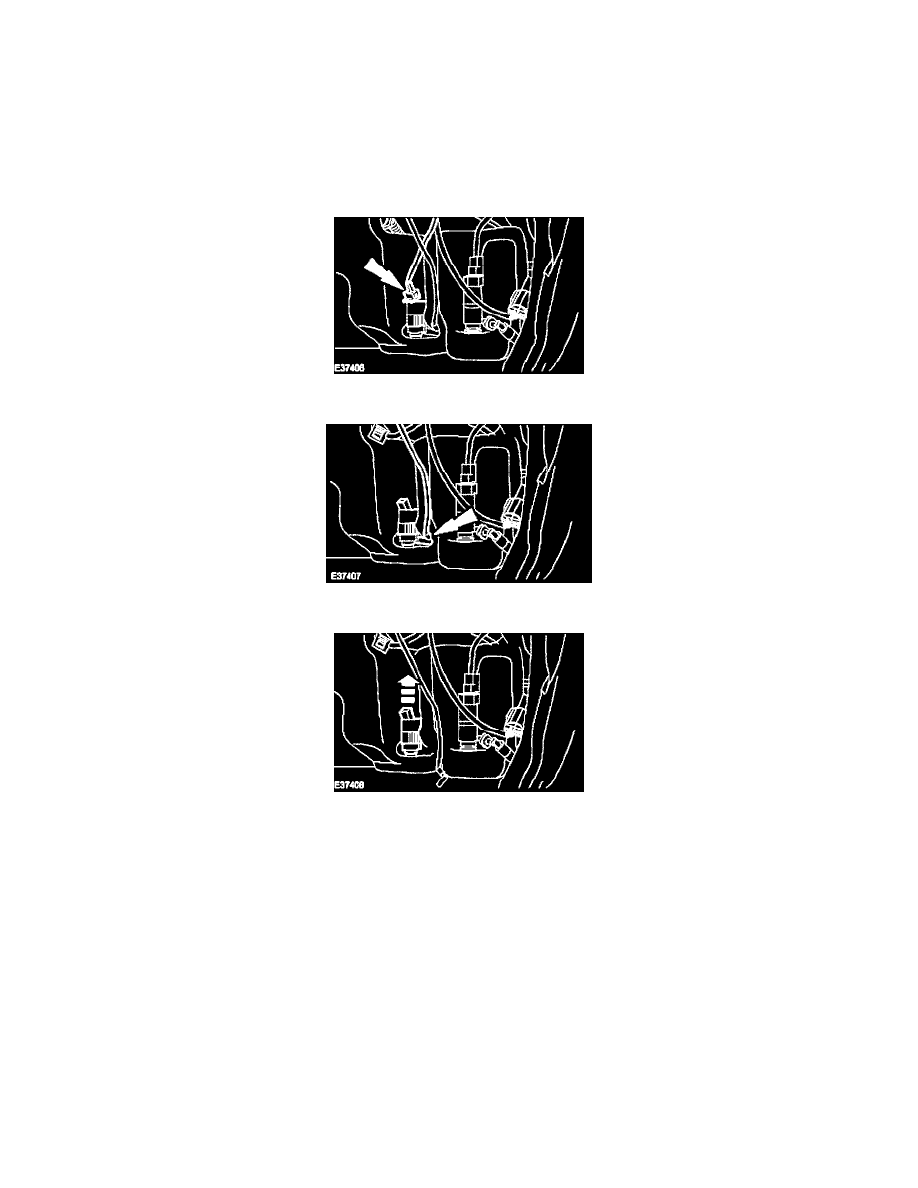

Removal
1. Remove the right-hand front wheel and tire.
2. Remove the right-hand front fender splash shield.
3. Disconnect the windshield washer pump electrical connector.
4. Disconnect the windshield washer pump supply hose.
5. Remove the windshield washer pump.
Installation
1. To install, reverse the removal procedure.
