XJR (X308) V8-4.0L SC (AJ26) (1998)
5. Release the fixing (1) OUTPUT speed sensor securing bracket & pull the sensor clear
NOTE: M6 fixing
-
Disconnect harness multiplug

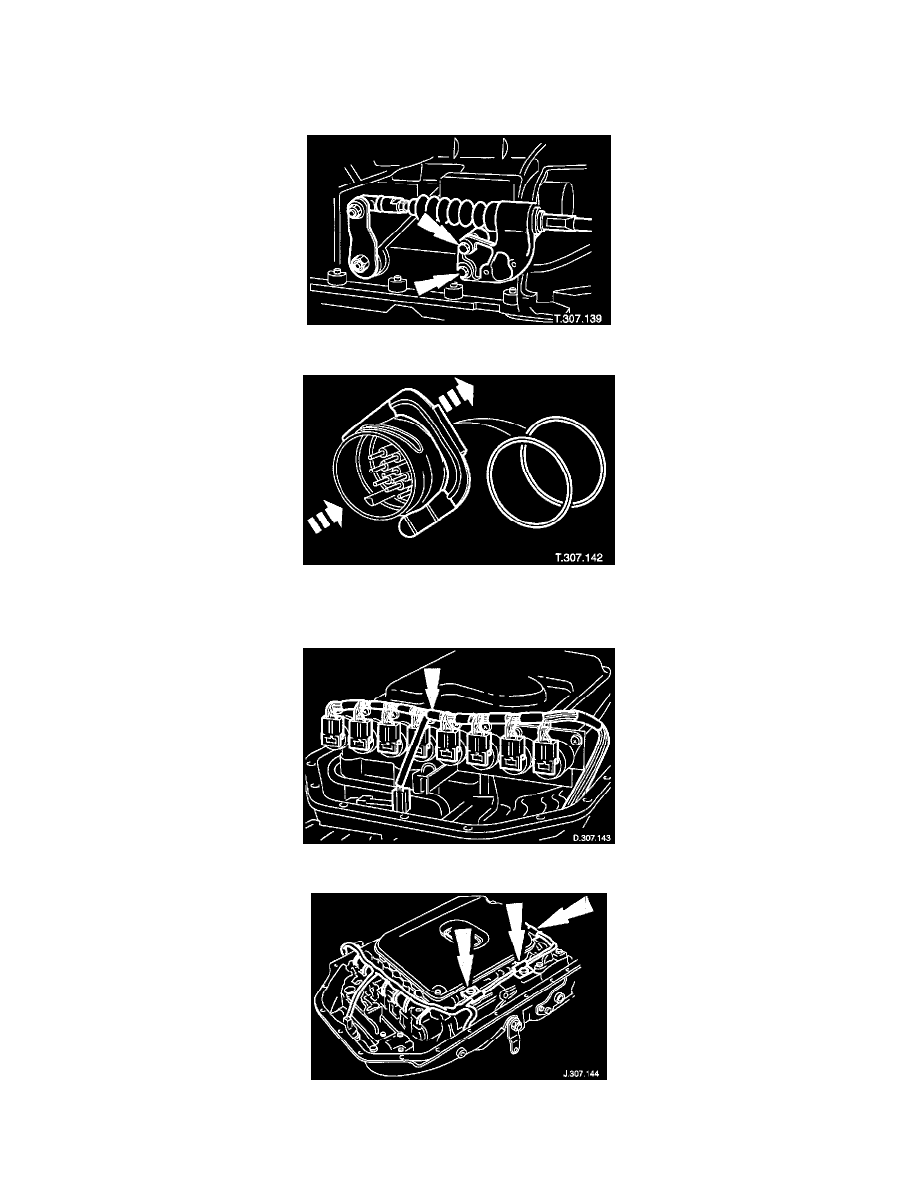

6. Disconnect transmission harness multiplug EM046
7. Remove selector cable abutment bracket fixings (2) & reposition the bracket for access to the multiplug
8. Remove harness multiplug retaining clip
-
Push the multiplug into the transmission casing to release
-
Discard "O" rings (2)
9. Disconnect pressure regulator (5) & solenoid (3) connectors
10. Release the internal harness from the retaining clips & remove the harness
Installation
