Air Register: Service and Repair
Center Registers (82.20.38)
Center Registers (82.20.38)
Removal
1. Remove the information and entertainment module.

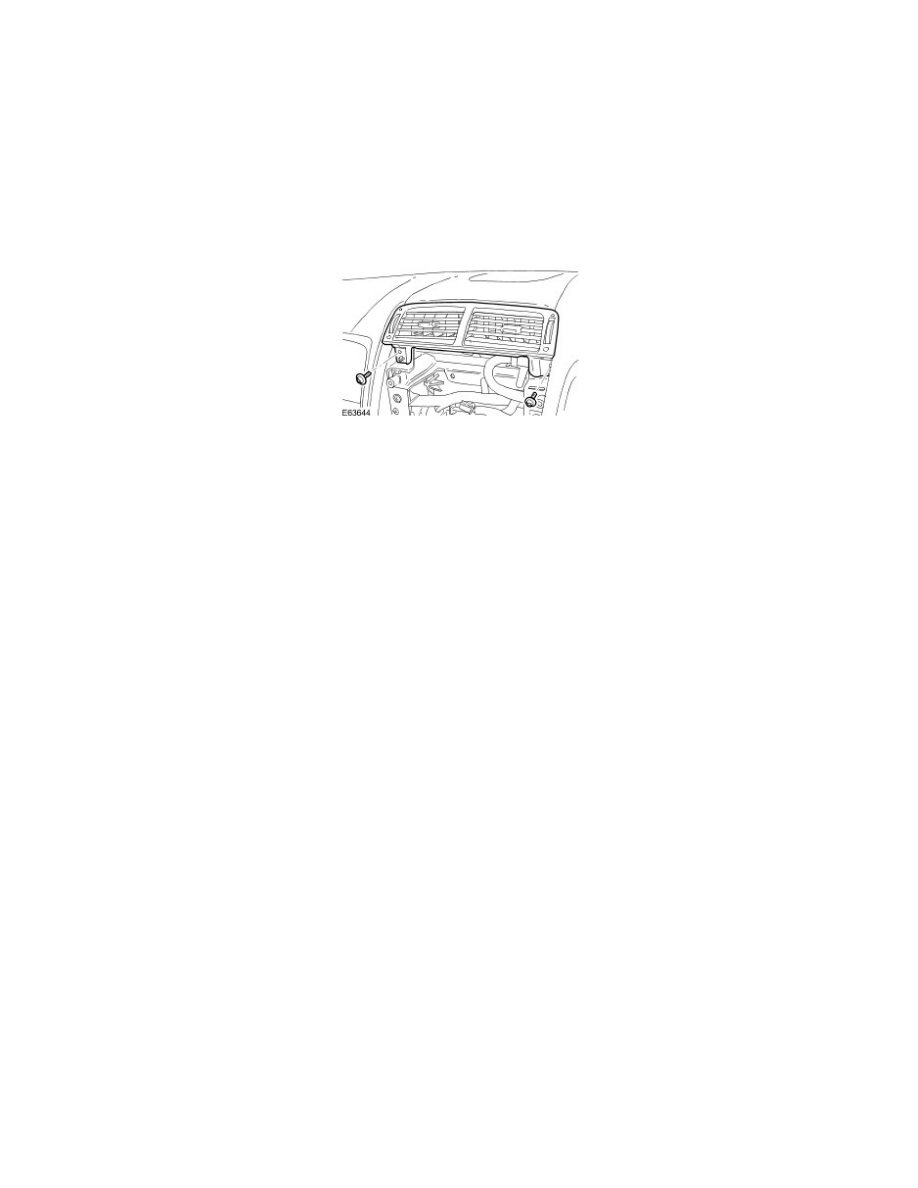

2. Remove the center register.
-
Remove the 2 Torx screws.
-
Carefully release the component.
NOTE: The Torx screws may not be fitted.
Installation
1. Carefully install the center register.
-
Install the Torx screws.
NOTE: The Torx screws may not be fitted.
2. Install the information and entertainment module.
