Cherokee 2WD L4-150 2.5L VIN P MFI (1991)
Relays and Modules
Relays and Modules - Brakes and Traction Control
ABS Light Relay
Component Information
Locations
Page 1

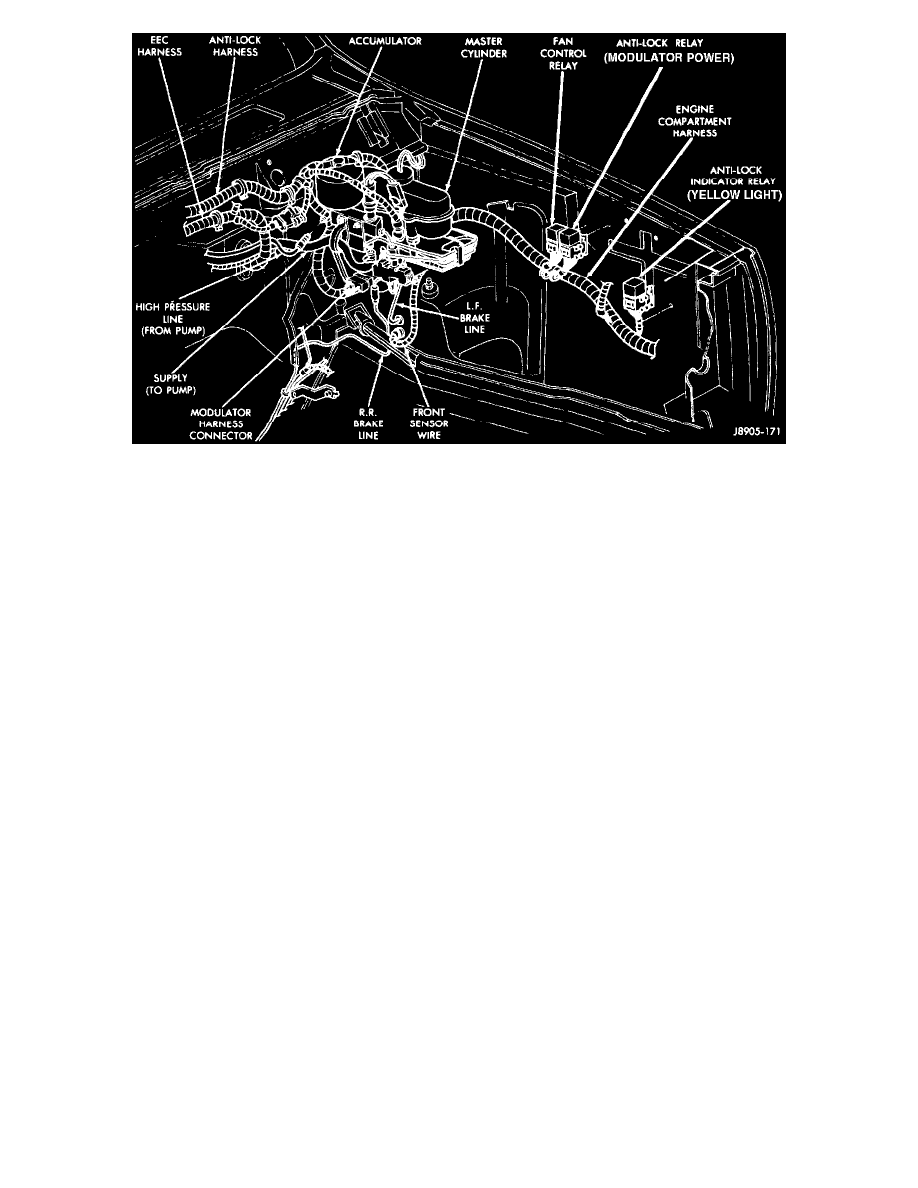

Fig. 25 - Modulator Power, Yellow Light Relays Location and Harness Layout
Relays and Modules
Relays and Modules - Brakes and Traction Control
ABS Light Relay
Component Information
Locations
