Backup Lamp Switch: Locations
Automatic Transmission - AW4

Automatic Transmission - AW4

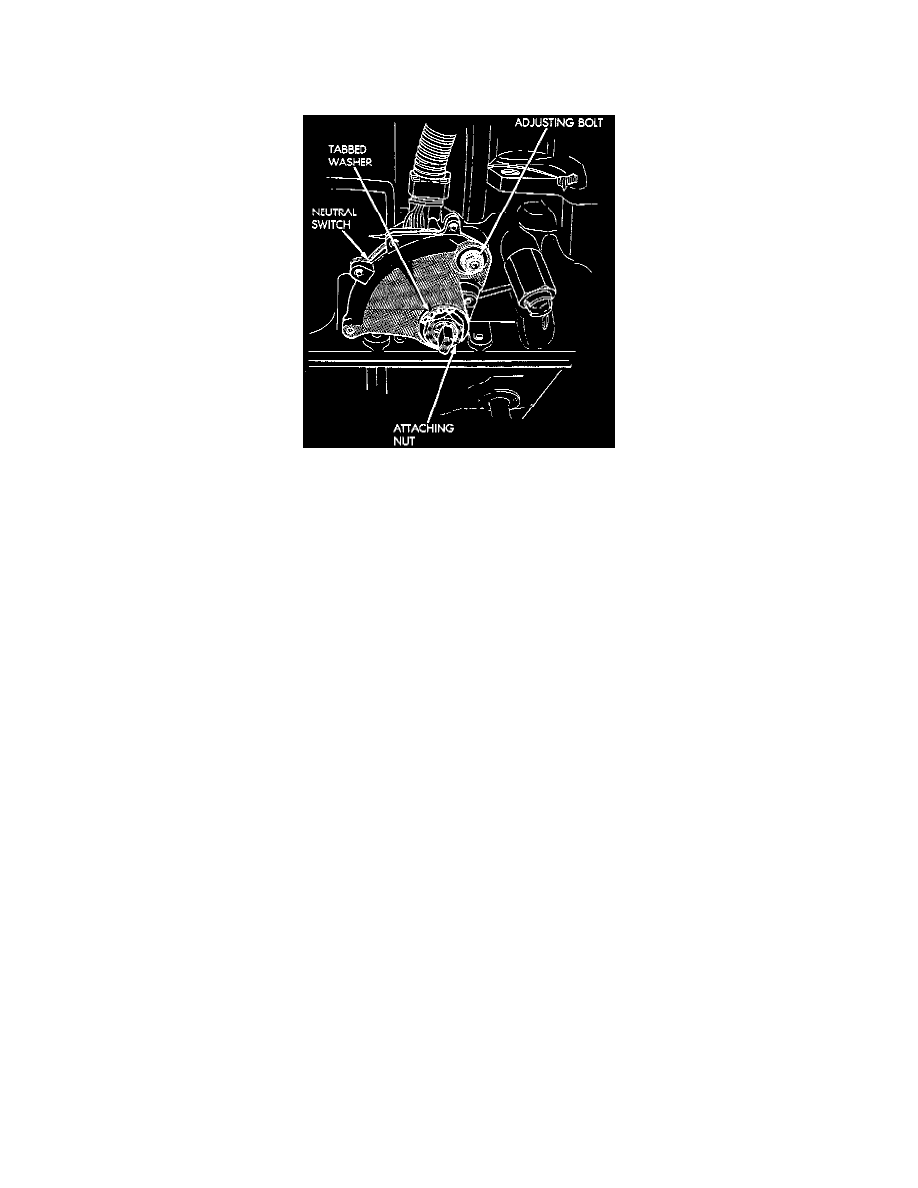

The Park/Neutral Safety Switch is located on the passenger side of the transmission.
