Cherokee 2WD L6-4.0L VIN S (1998)
Cargo Lamp: Service and Repair
Cargo Lamp
REMOVAL

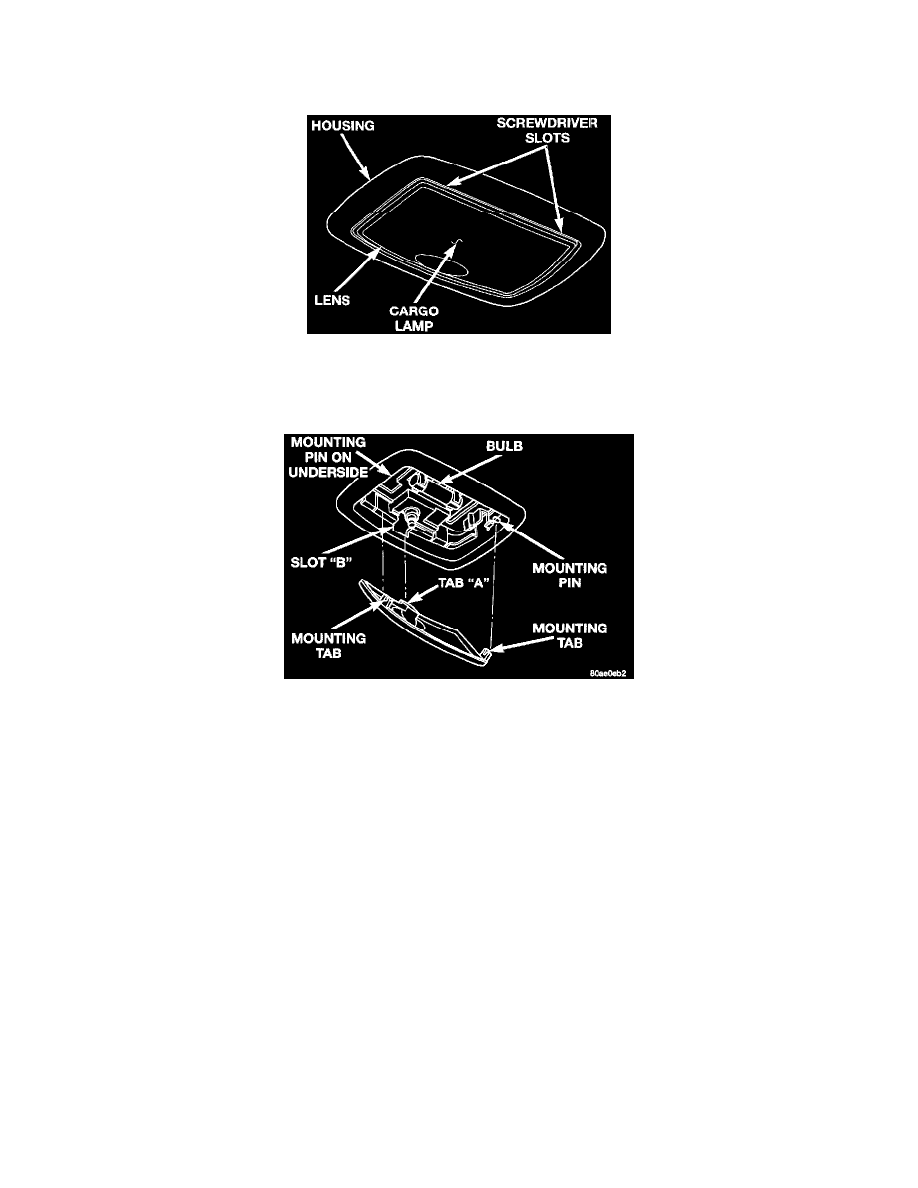

Cargo Lamp Lens
1. Insert a small flat blade into the access slots.
2. Carefully pry the lens from the lamp.
Cargo Lamp Lens
3. Disengage the lens mounting tabs from the lamp mounting pins.
4. Remove the fasteners attaching the lamp to the roof.
5. Remove the lamp housing from the headliner cavity.
6. Disconnect the wire harness connector.
INSTALLATION
1. Position the dome lamp housing at the headliner cavity
2. Connect the wire harness connector.
3. Install the fasteners attaching the lamp to the roof.
