Cherokee 2WD L6-4.0L VIN S (1998)
Electronic Brake Control Module: Service and Repair
Disassembly and Assembly
DISASSEMBLY

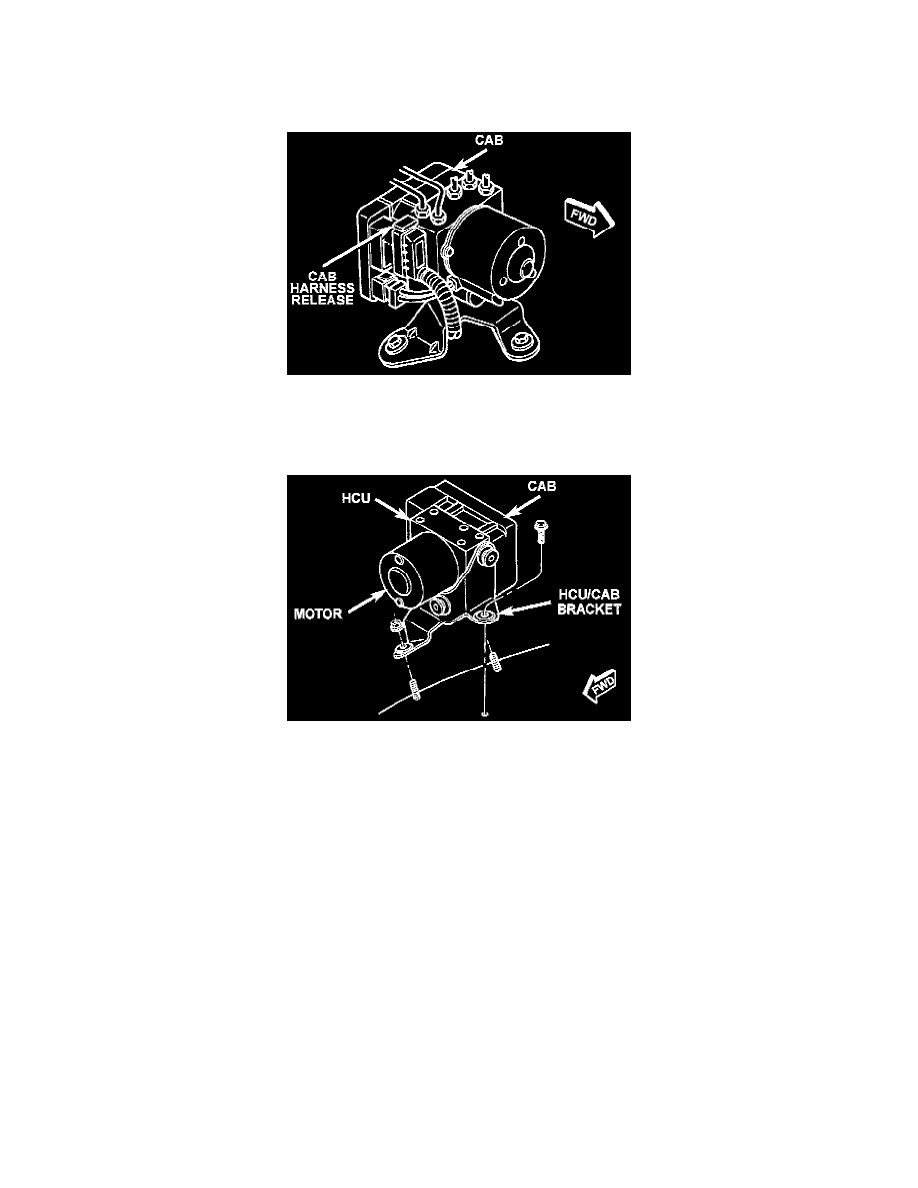

1. Remove pump motor connector from the CAB.
CAB Mounting Screws
2. Remove CAB mounting screws from the HCU.
3. Remove CAB from the HCU.
ASSEMBLY
1. Install the CAB onto the HCU.
2. Install the CAB mounting screws and tighten to 1.8 Nm (16 inch lbs.).
3. Install pump motor connector to the CAB.
