Cherokee 2WD L6-4.0L VIN S (1998)
Torque Converter: Initial Inspection and Diagnostic Overview
TORQUE CONVERTER STATOR CLUTCH INSPECTION

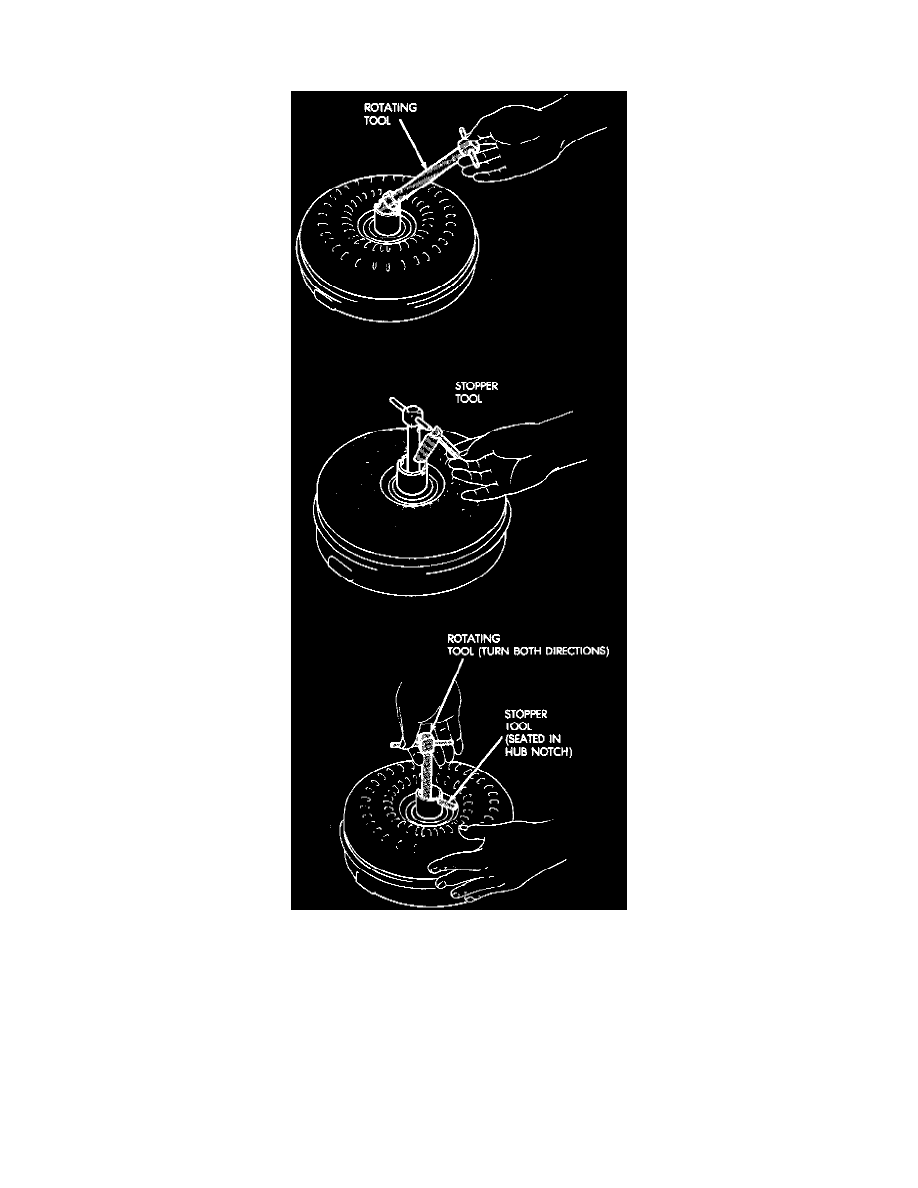

Checking Operation Of Torque Converter Stator One-Way Clutch
1. Insert Rotating Tool 7547 into converter hub and seat tool in one-way clutch.
2. Insert Stopper Tool 7548 in one converter hub notch and into outer race of rotating tool.
3. Turn rotating tool clockwise. Converter clutch should rotate freely and smoothly. Less than 2.5 Nm (22 inch lbs.) of torque should be required to
rotate clutch in clockwise direction.
4. Turn rotating tool in counterclockwise direction. Converter clutch should lock.
5. Replace converter if clutch binds or will not lock.
