Comanche 4WD L4-150 2.5L VIN H TBI (1986)
Front Door Hinge: Customer Interest
Door - Stiff Operation/Noisy
NO.: 23-62-91
GROUP:
BODY
DATE:
Sept. 23, 1991
SUBJECT:
Door Hinge Pin Service
MODELS:
1991
XJ Cherokee
1984-1990
XJ Cherokee/Wagoneer (RWD, 4WD)
1986-1991
MJ Comanche
SYMPTOM/CONDITION:
On the listed models, a roll pin is used as a door hinge pin that may be difficult to lubricate. A lack of lubrication may result in a noisy door hinge or a
stiff operating door. A new solid hinge pin and a teflon impregnated self-lubricating bushing, used in production (MDH 02-18-XX and later - front door
and MDH 01-28-XX and later - rear door), are now available in a service package.
PARTS REQUIRED:
1
Pkg, Hinge Pin & Bushing
4638276
Package contents:
Pin, Hinge
55074639
Bushing
55074640
1
Hinge, Door Half Frt./Rr.
55074638

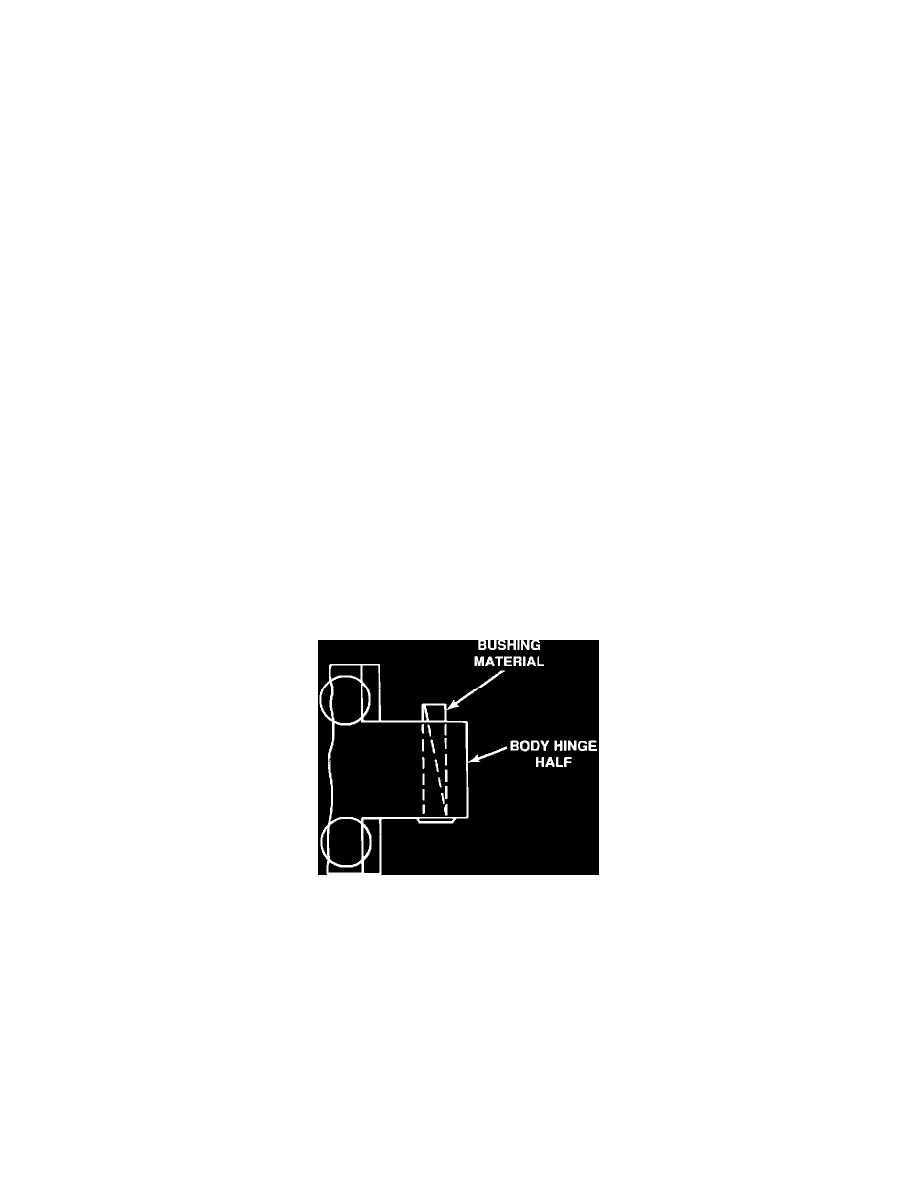

Figure 1
REPAIR PROCEDURE:
Following are the instructions for installing the hinge pin and bushing.
1.
Remove the door as described in the applicable Service Manual.
2.
Drive the hinge pins out of the upper and lower hinges and discard the hinge pins and door half of each hinge.
3.
Install a new hinge half on the door.
4.
Enlarge the hole in the body half of the upper and lower hinges using a 0.281 in. (9/32 in.) drill bit being careful not to distort or elongate the hole.
5.
Chamfer and/or break the sharp edges of the hole on both sides using an oversized drill bit or a 45~ chamfering tool to a minimum depth of .020 in.
