Comanche 4WD L4-150 2.5L VIN H TBI (1986)
Backup Lamp Switch: Service and Repair
Automatic Transmission
NEUTRAL START / BACKUP LAMP SWITCH

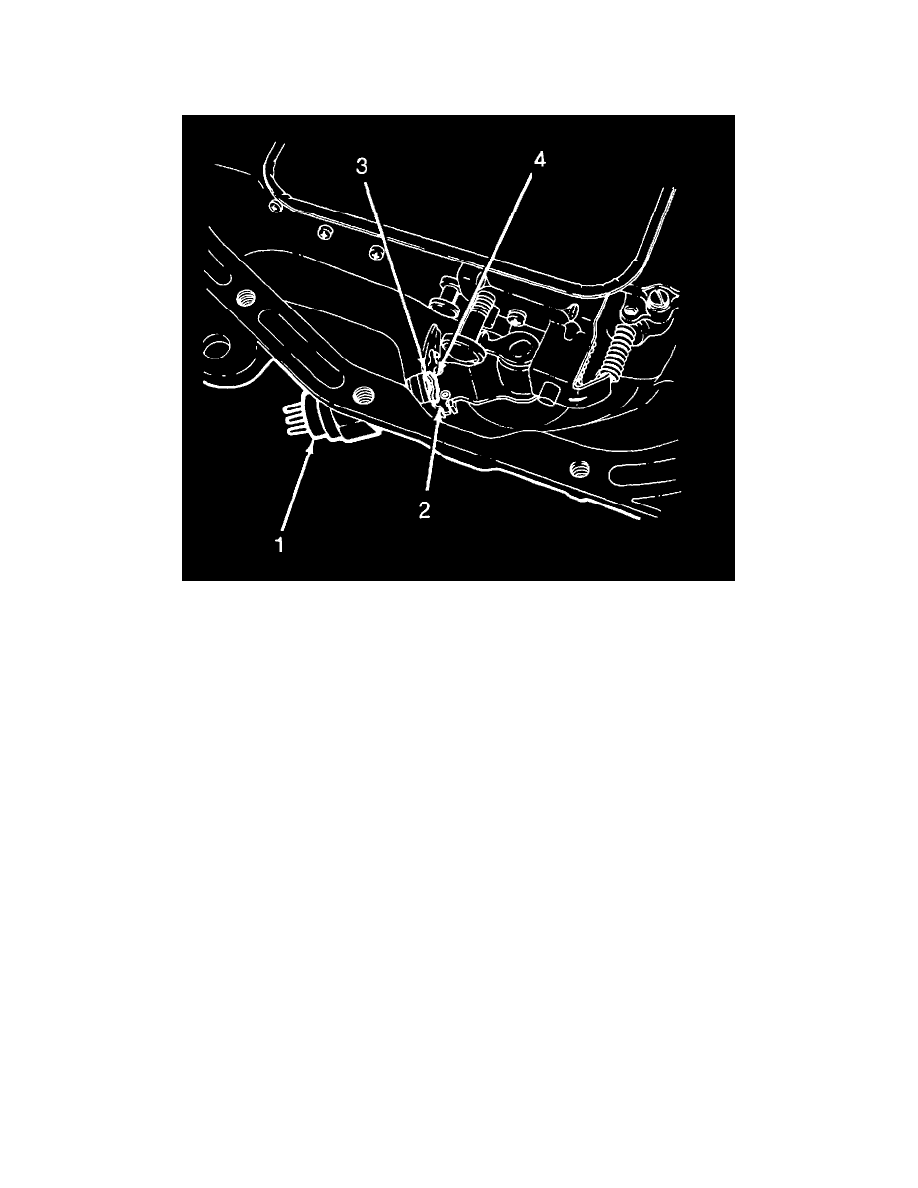

Neutral Start And Backup Lamp Switch
The neutral start and backup lamp switches are an integral assembly and cannot be replaced separately.
1. Remove the switch from the transmission. Allow the transmission fluid to drain into the container.
2. Move the gearshift lever to Park (2) and Neutral (3) positions. Inspect the switch operating lever fingers and the manual lever and shaft for proper
alignment with the switch opening in the case.
3. Install the switch and the switch seal in the transmission case. Tighten the switch with 35 Nm (24 ft. lbs.) torque.
4. Test the switch continuity.
5. Correct the transmission fluid level as required. Refer to Fluid Level and Condition for the refill procedure.
See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Service and Repair/Procedures
