Commander 2WD V6-3.7L (2009)
Fuel Injector: Service and Repair
Fuel Injector - Removal
3.7L/4.7L
1. Remove the fuel rail assembly See: Fuel Rail/Service and Repair/Fuel Rail - Removal

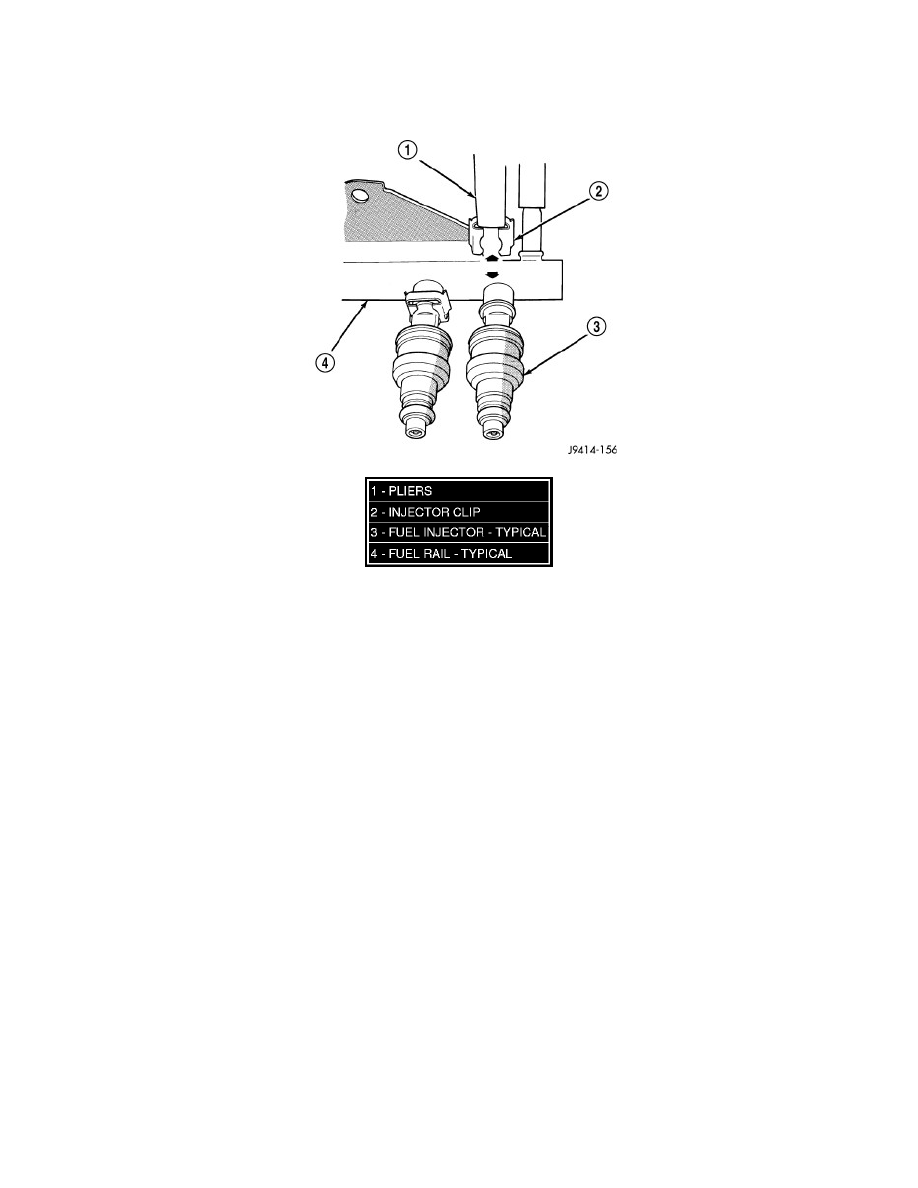

2. Using suitable pliers (1), remove the fuel injector retaining clip (2).
3. Remove the fuel injector (3) from the fuel rail (4) using a side to side motion while pulling the injector out of the fuel rail assembly.
