Commander 2WD V6-3.7L VIN K (2006)
Parking Assist Distance Sensor: Service and Repair
Front
SENSOR-PARK ASSIST

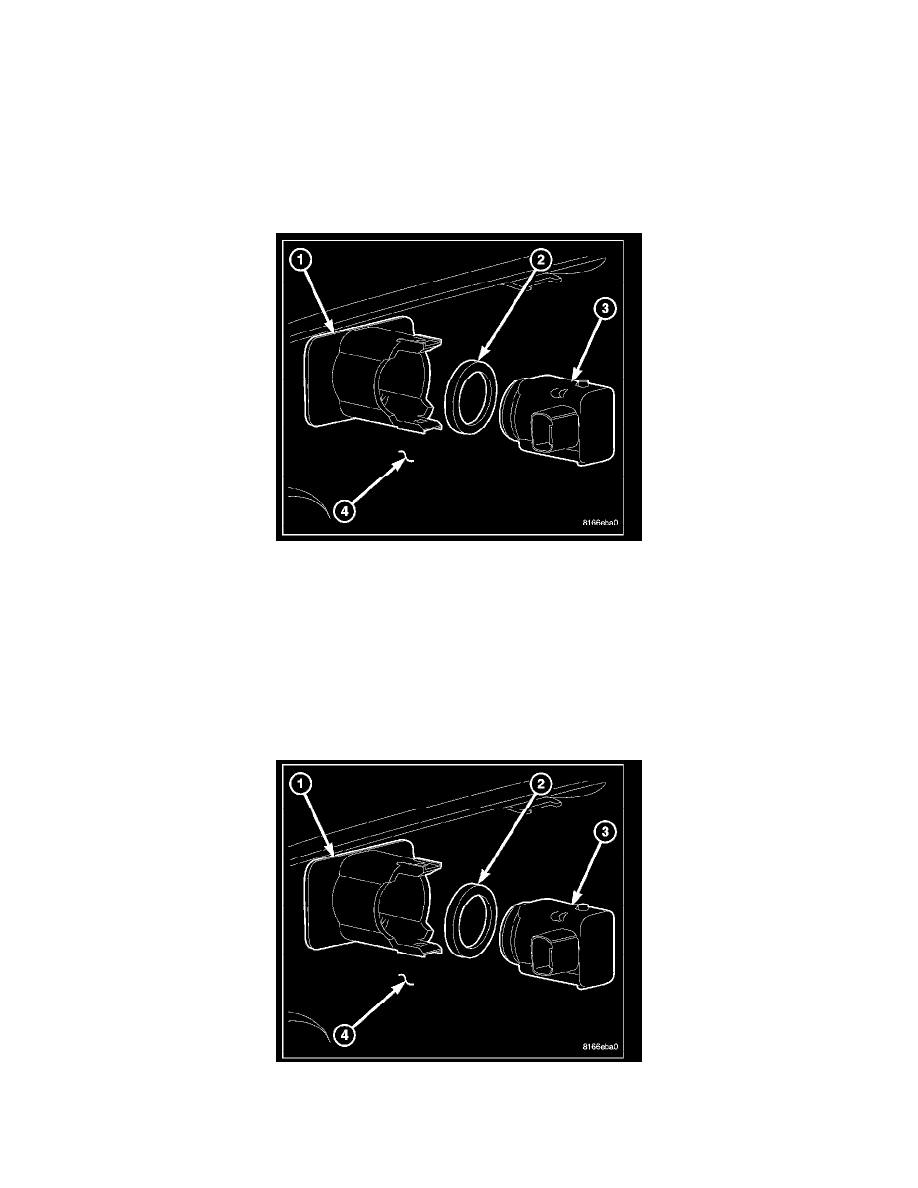

NOTE: The park assist sensors (3) and the sensor spacers (2) are each available for separate service replacement. The sensor brackets (1) are bonded
and integral to the back side of the front bumper fascia (4).
FRONT
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the bumper fascia from the front of the vehicle.
3. From the back of the fascia (4), disconnect the wire harness connector from the park assist sensor (3) connector receptacle.
4. Carefully pry the sensor bracket (1) latch features away from the top and bottom tabs of the sensor far enough to disengage the sensor from the
bracket.
5. Disengage the O-ring spacer (2) from around the circumference of the sensor membrane protrusion.
INSTALLATION
1. Engage the O-ring spacer (2) around the circumference of the sensor (3) membrane protrusion.
NOTE: Production and all service replacement O-ring spacers are tapered. The wide side (base) of the O-ring should be seated against the sensor
housing and the narrow side should be oriented toward the outer surface of the sensor membrane and the front fascia.
2. Align and insert the sensor into the sensor bracket (1) on the back of the front bumper fascia (4) until the bracket latch features are fully engaged
over the top and bottom tabs of the sensor. Be certain that the sensor membrane is flush with the outer surface of the fascia.
