Commander 2WD V6-3.7L VIN K (2006)
CAUTION: Verify that the geartrain end-play shim is properly installed over the output shaft and against the park gear.
NOTE: The closed side of the bearing must be installed toward the parking lock gear. If the bearing is installed in the other direction, the transmission
gearcase will need to be removed in order to remove the bearing.

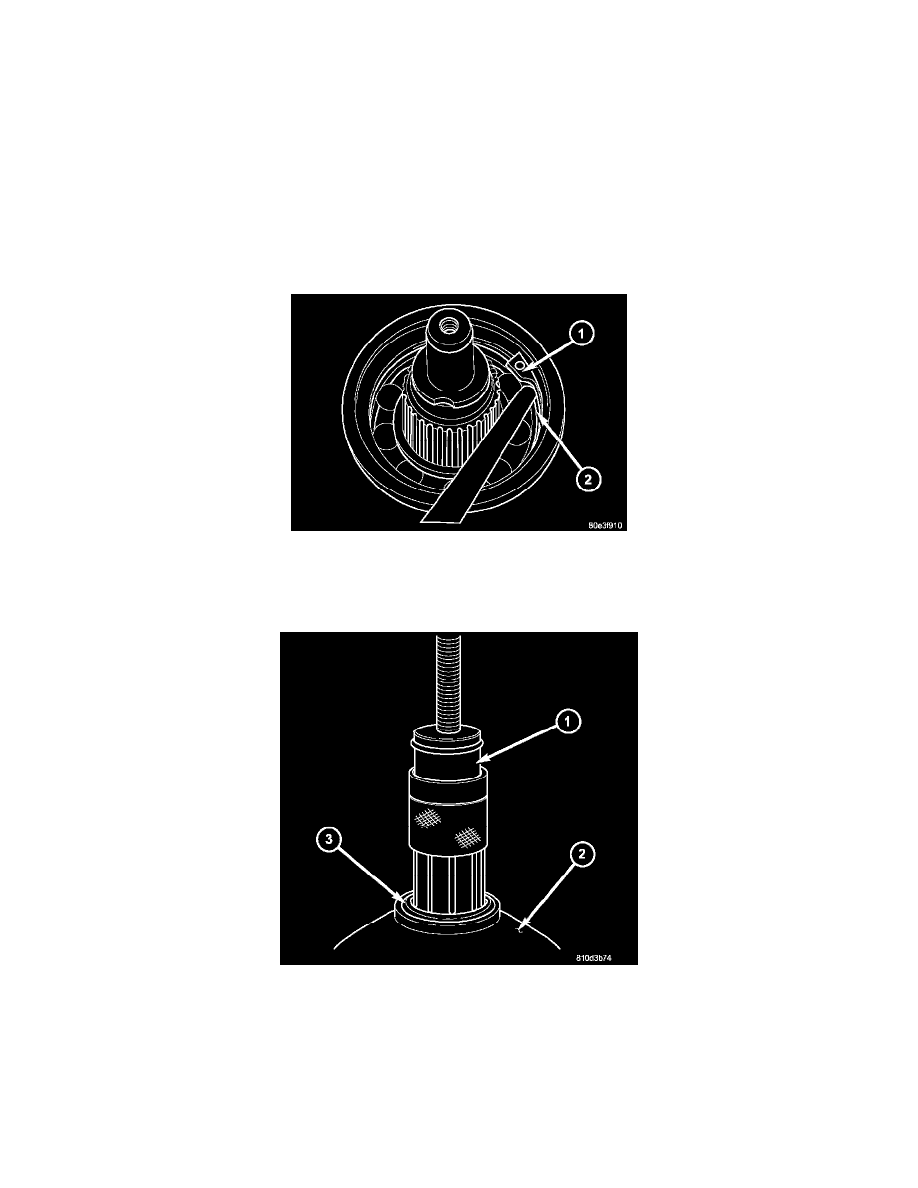

1. Using Bearing Installer 9287 (1), install the output shaft bearing (2) into the transmission housing (3). The closed side of the plastic cage must
point towards the parking lock gear.
2. Install the retaining ring (1). Ensure that the retaining ring is seated correctly in the groove.
3. Check that there is no play between the bearing and the retaining ring using feeler gauge.
4. There must be no play between the retaining ring and the bearing. If the ring cannot be installed, a thinner ring must be used. If there is play
between the ring and the bearing, a thicker ring must be installed. Retaining rings are available in thicknesses of 2.0 mm (0.079 inch), 2.1 mm
(0.083 inch), and 2.2 mm (0.087 inch).
5. Install the output shaft washer onto the output shaft.
6. Install a new transmission rear seal into the trans mission case with Seal Installer 8902A (1).
7. For 4WD transmissions:
a. Install the output shaft extension onto the out put shaft.
b. Install the nut to hold the output shaft extension to the output shaft. Torque the bolt to 200 Nm (148 ft. lbs.).
c. Install the transfer case adapter housing onto the transmission case.
d. Install the bolts to hold the transfer case adapter housing onto the transmission case. Torque the bolt to 20 Nm (177 inch lbs.).
