Compass 2WD L4-2.0L VIN 0 (2007)
Splash Guard: Service and Repair
Removal
REMOVAL
1. If necessary, position aside the front wheelhouse splash shield. Refer to Front Fender Liner.

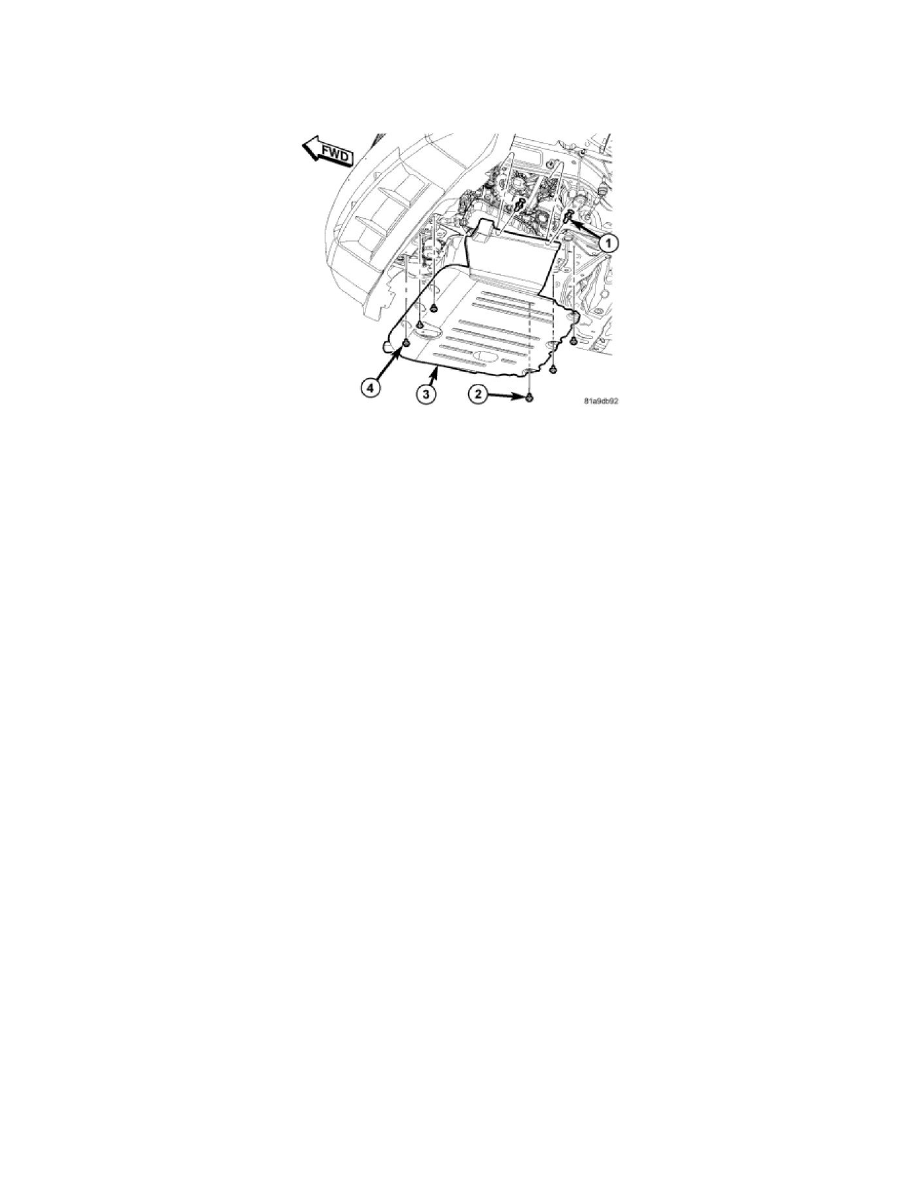

2. Remove the four side push pin fasteners (1).
3. Remove the rear screws (2).
4. Remove the front screws (4) and remove the belly pan (3).
