Compass 2WD L4-2.0L VIN 0 (2007)

Page 1
background image

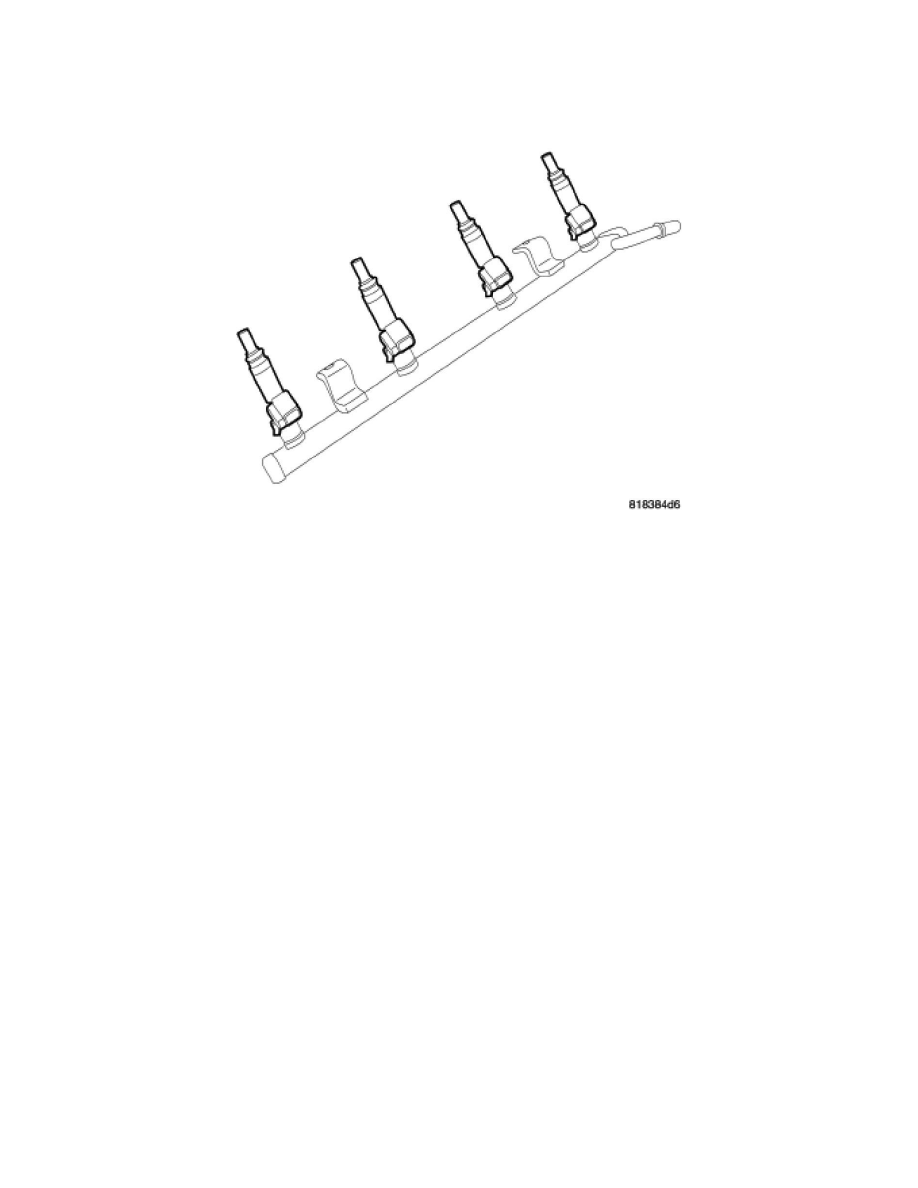

Fuel Rail: Description and Operation
Description

DESCRIPTION

The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold.
