Compass 2WD L4-2.0L VIN 0 (2007)
Ball Joint: Service and Repair
Removal
REMOVAL
CAUTION: This procedure is designed to be used only if a seal boot is damaged during related service procedures. It is not to be used as a
repair procedure for a cut seal boot on a vehicle that has been driven and exposed to road and weather conditions.
1. Remove the lower control arm from the vehicle.

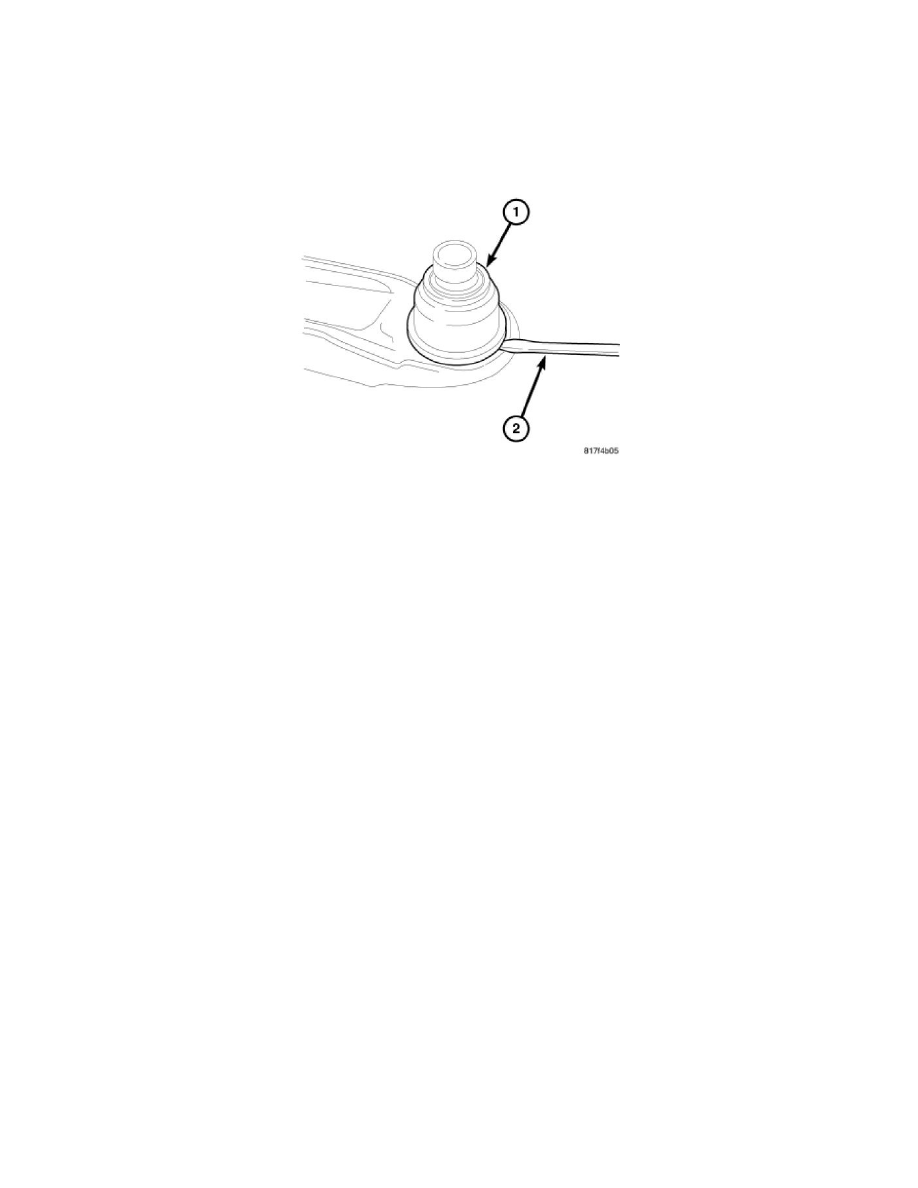

2. Using a screwdriver or other suitable tool (2), pry the seal boot (1) off of the ball joint.
