Compass 2WD L4-2.4L (2008)
Relay-Trailer Tow-Left
Component ID:
302
Component :
RELAY-TRAILER TOW-LEFT

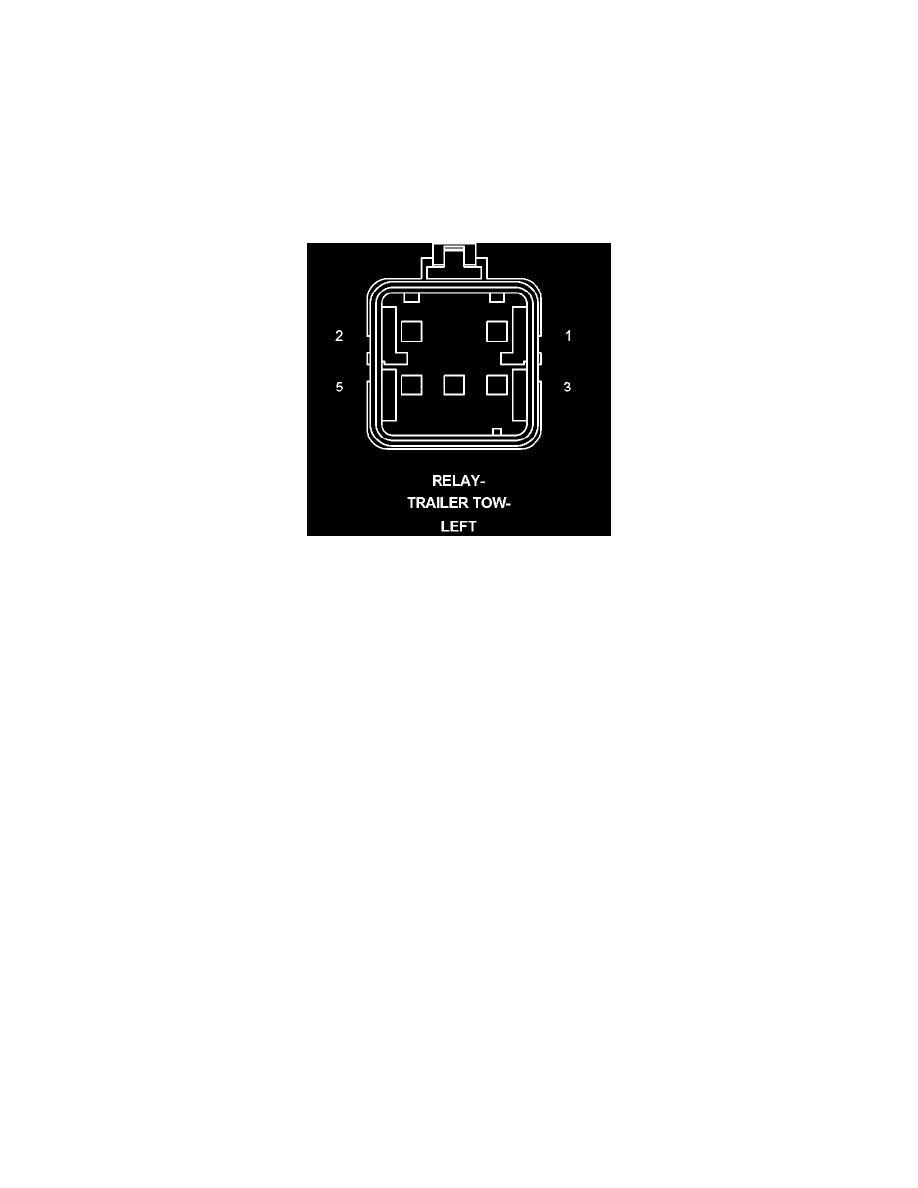

Connector:
Name :
RELAY-TRAILER TOW-LEFT
Color :
# of pins :
5
Gender :
FEMALE
Pin
Circuit
Description
1
L615 18WT/LB
TRAILER TOW LEFT STOP/TURN SIGNAL
2
L63 20DG/RD
LEFT REAR TURN SIGNAL CONTROL
3
Z960 18BK/LB
GROUND
4
L650 18WT/DG
RIGHT TRAILER TOW STOP LAMP RELAY OUTPUT
5
L651 18WT/LG
LEFT TRAILER TOW STOP LAMP RELAY OUTPUT
Component Location - 68
