Compass 2WD L4-2.4L (2008)

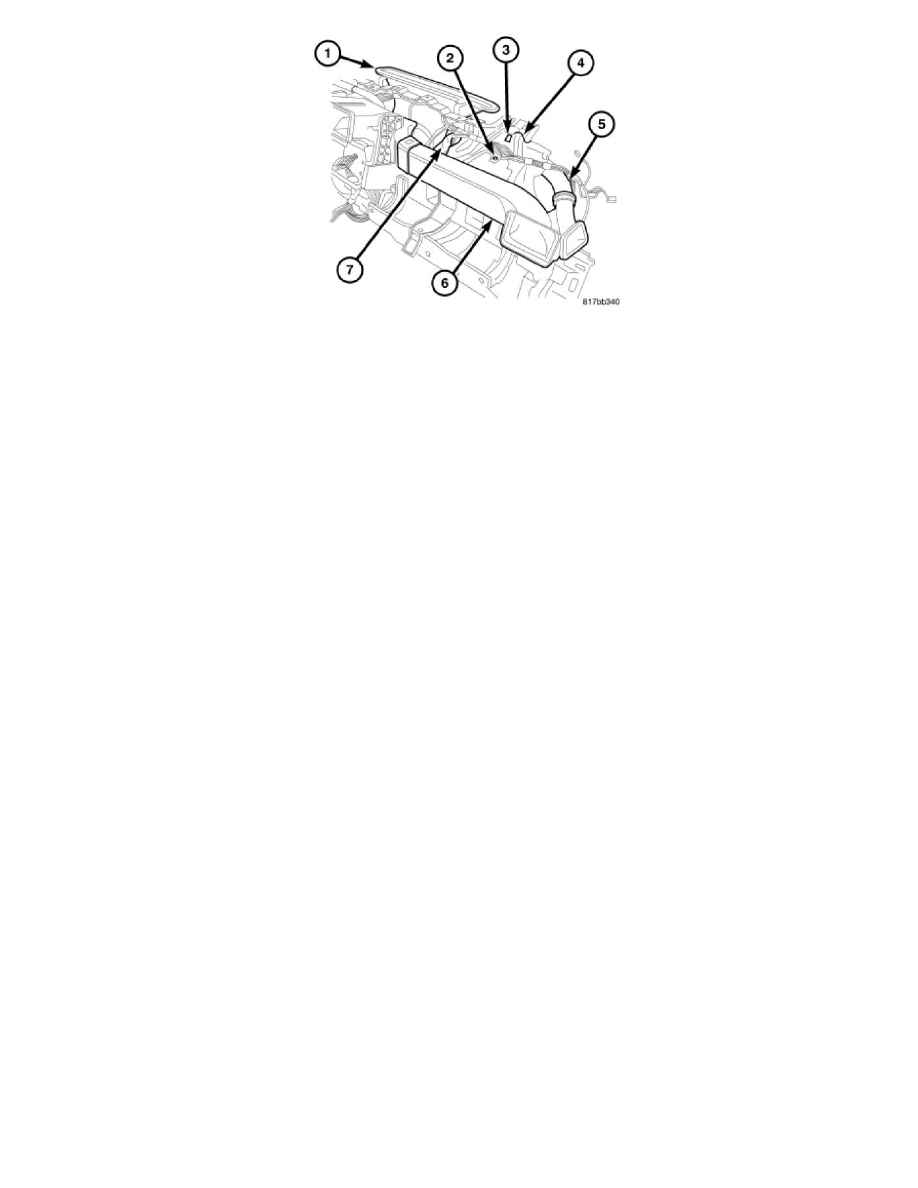

6. Position the passenger side demister duct (5) to the instrument panel support (4) through the defoster duct opening.
7. Engage the demister duct retaining tab (3) to the instrument panel support.
8. Engage the demister duct push-pin type fastener (2) to the instrument panel support.
9. Install the passenger side instrument panel duct (6) See: Instrument Panel Ducts - Installation.
10. Install the passenger side demister hose (7) onto the demister duct.
11. Install the defroster duct (1) See: Defroster Ducts - Installation.
12. Install the instrument panel top cover See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Instrument
Panel Cover - Installation.
