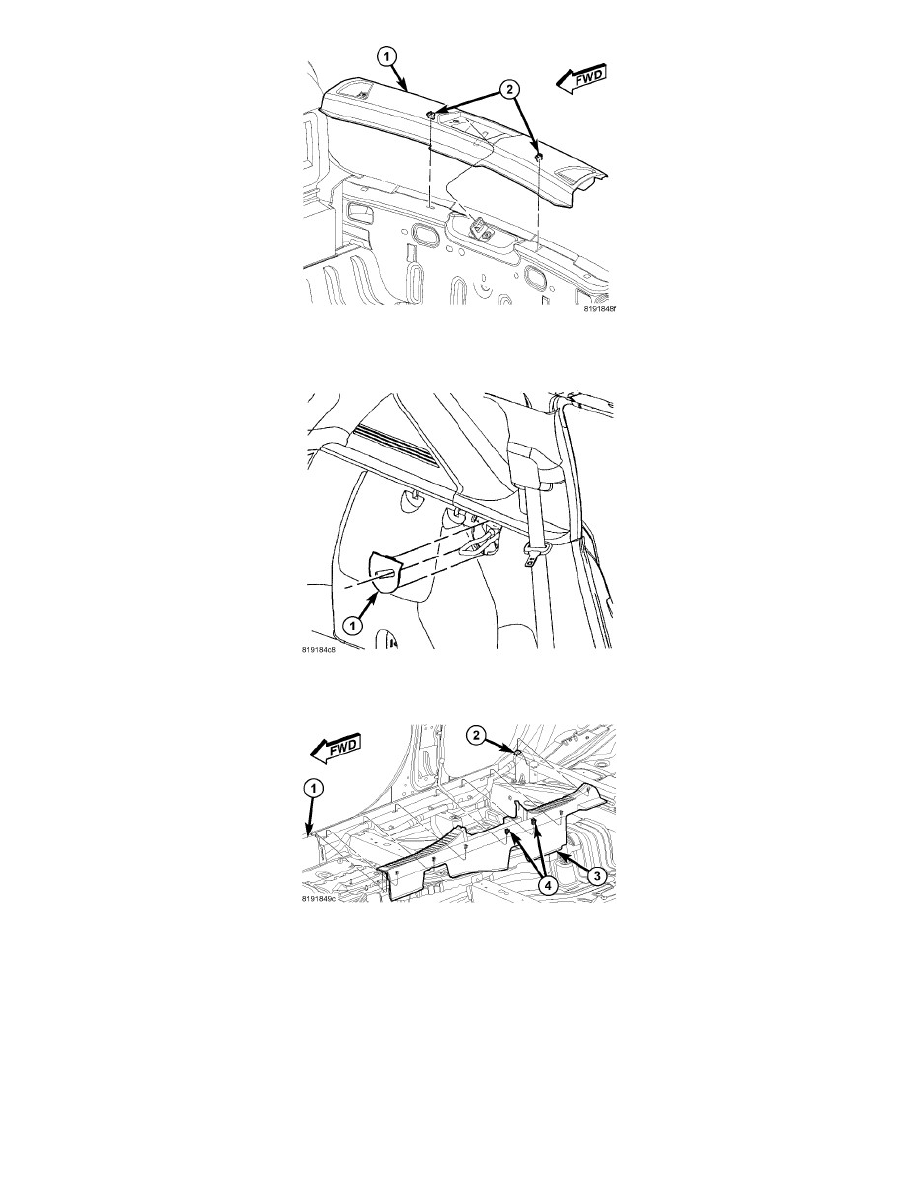

3. Position the liftgate scuff plate (1) onto the liftgate sill and seat the retaining clips (2) fully.

4. Position the seat latch striker trim (1) back into place and seat fully.

5. Fold the seat back up and install the door sill scuff plate (3), See: Scuff Plate/Service and Repair/Scuff Plate - Installation.
