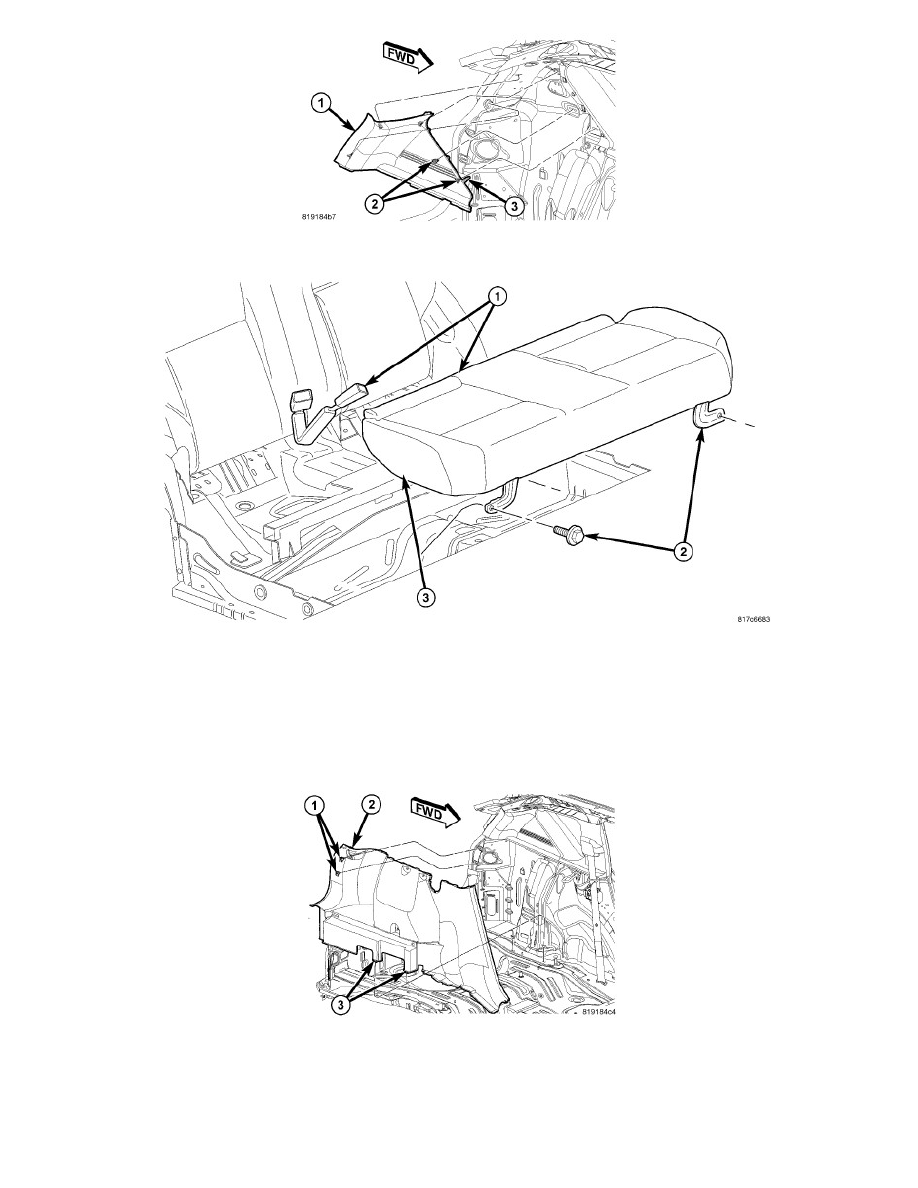

1. Install the D-pillar trim (1), See: Pillar Trim/D-Pillar Trim/Installation.

2. Install the rear seat cushion (3), See: Seats/Seat Cover/Service and Repair/Seat Cushion Cover - Installation.

Removal

REMOVAL

Compass and Patriot

NOTE: Compass shown, Patriot similar.

NOTE: Left side shown, right side similar.

1. Remove the quarter trim panel (2), See: Luggage Compartment Trim/Quarter Trim Panel - Removal.
