Compass 4WD L4-2.0L (2009)
Automatic

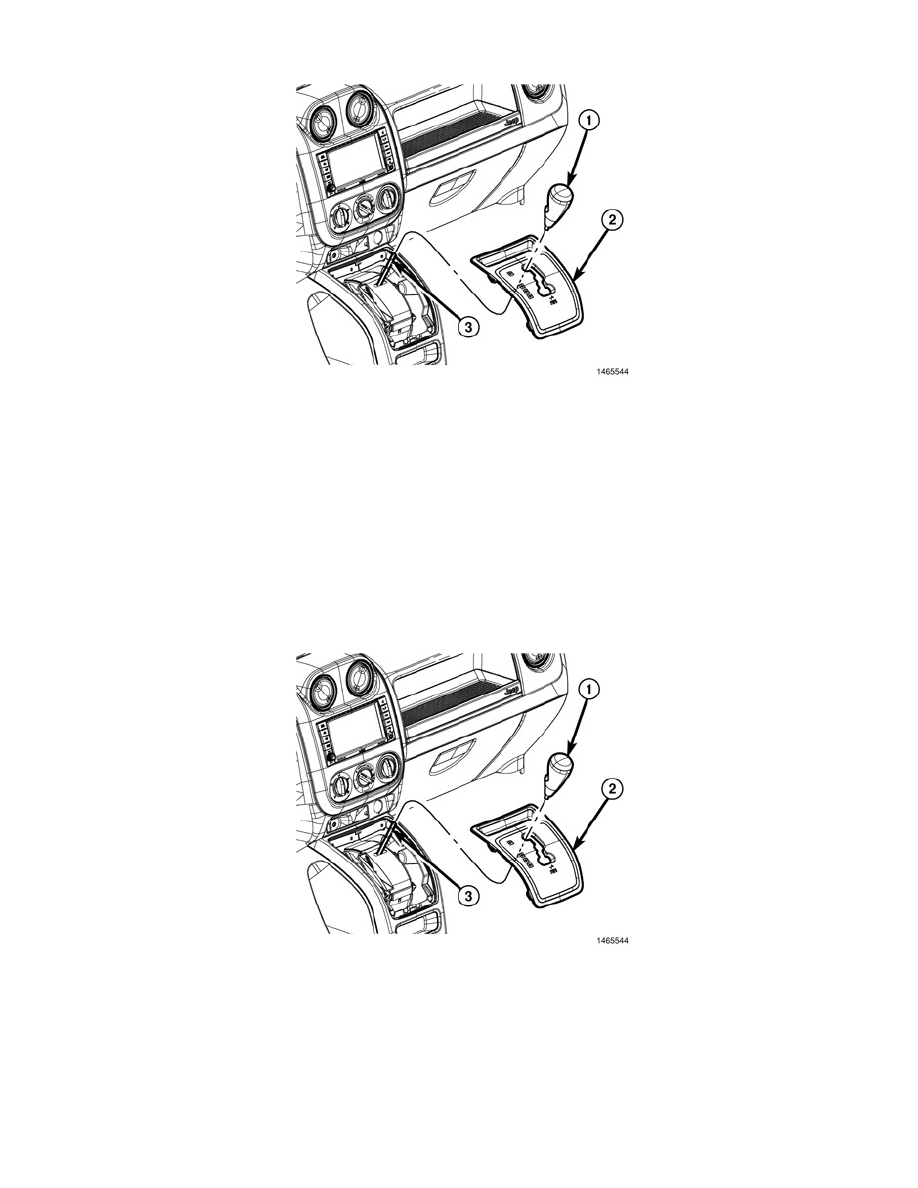

1. Pull up on shifter knob (1) and remove from the shifter shaft (3).
2. Using trim stick C-4755 or equivalent, separate the bezel (2) from the shifter console.
Manual
1. Pull up on shifter knob and remove from the shifter shaft.
2. Using trim stick C-4755 or equivalent, pry up on the shifter boot and separate from the bezel.
3. Using trim stick C-4755 or equivalent, separate the bezel from the shifter housing.
Shifter Bezel - Installation
INSTALLATION
Automatic
1. Install the shifter bezel (2) onto the shifter console and seat fully.
2. Install the shift knob (1) onto the shifter (3) and seat fully.
Manual
1. Install the shifter bezel onto the shifter console and seat fully.
2. Install the shift boot and seat fully.
3. Install the shift knob onto the shifter and seat fully.
