Compass 4WD L4-2.0L (2009)
Air Filter Element: Service and Repair

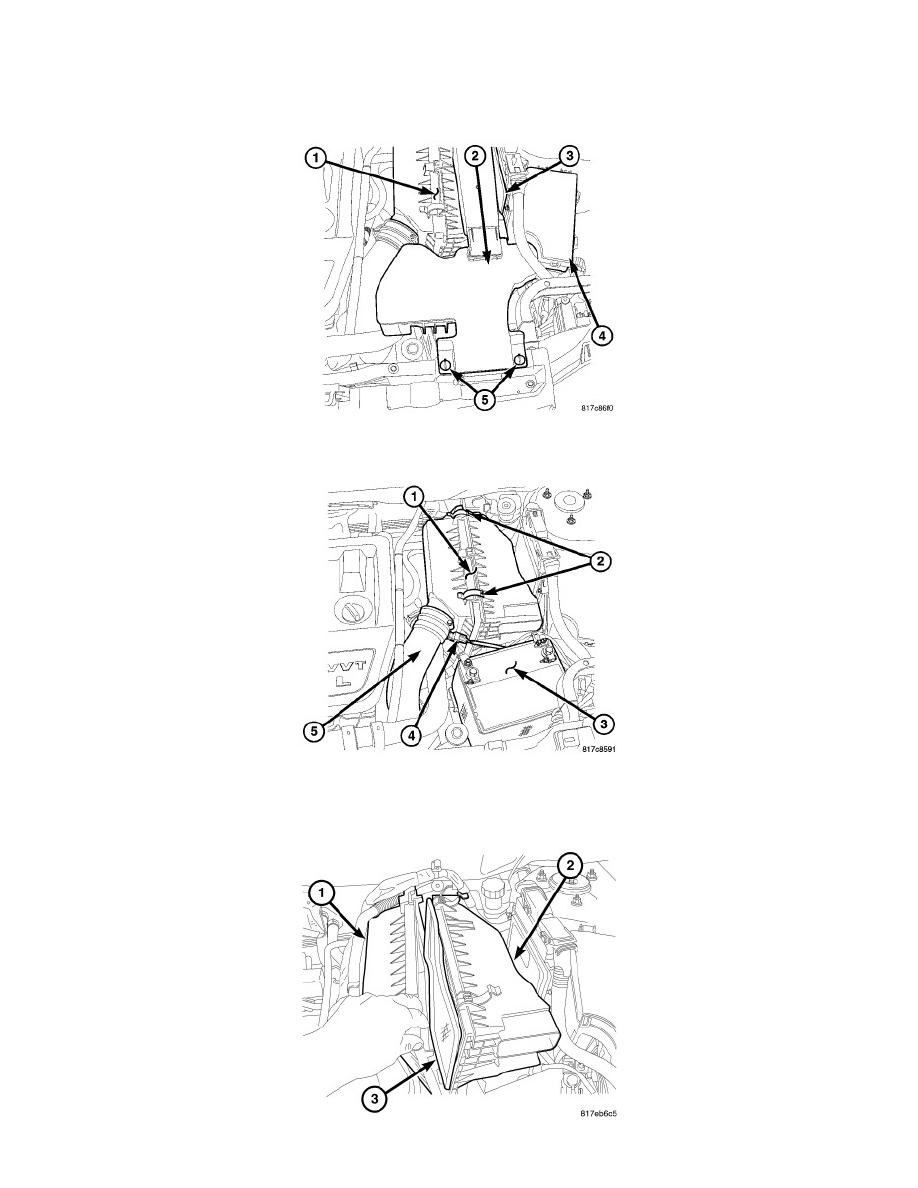

Air Cleaner - Removal
REMOVAL
1. Turn lock retainers (5) and remove fresh air inlet (2) from air cleaner housing (1).
2. Disconnect intake air temperature sensor connector (4).
3. Remove air inlet tube (5) from air cleaner housing (1).
4. Unfasten clasps (2) on sides of air cleaner housing cover.
