Compass 4WD L4-2.4L VIN W (2007)

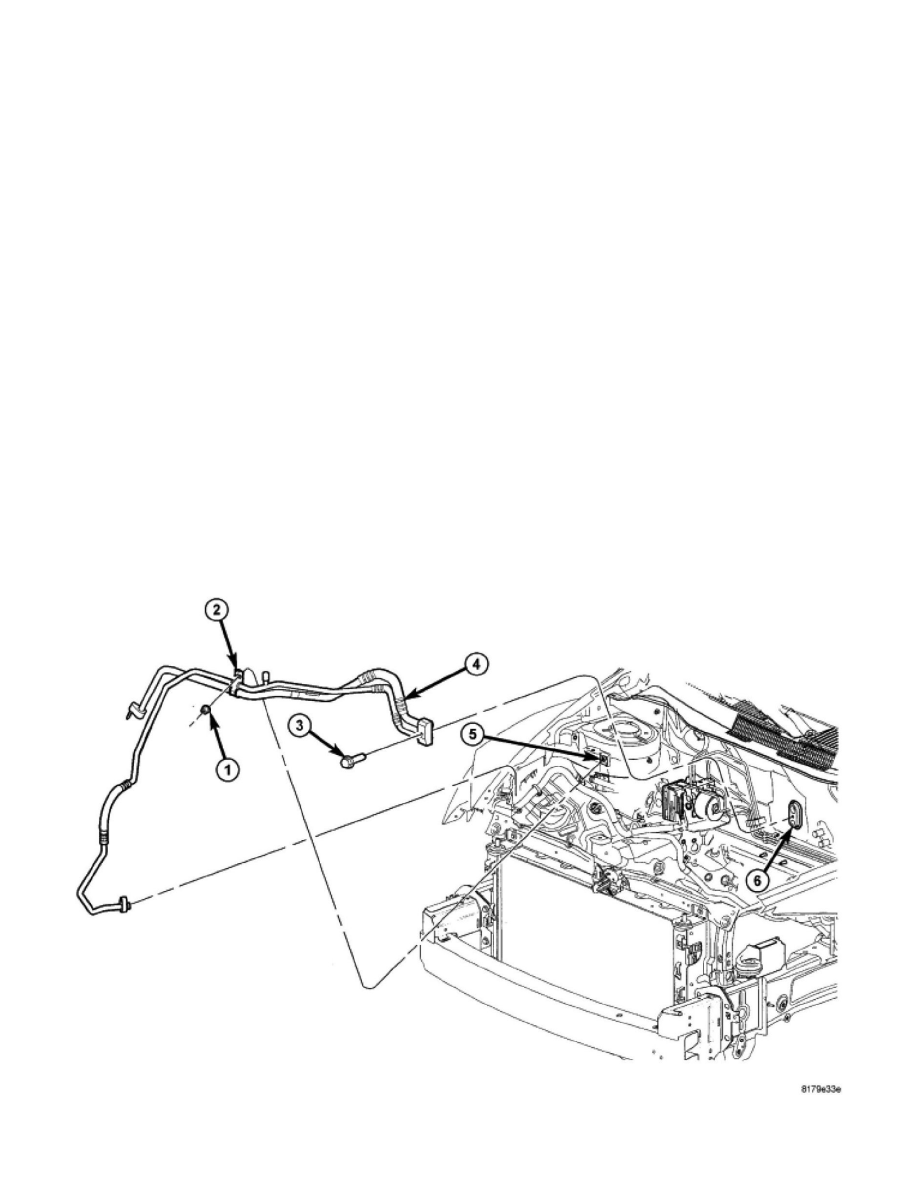

11. Remove the nut (1) that secures the refrigerant line retaining bracket (2) to the right front strut tower (5).
12. On RHD models, disengage the retainers that secure the power brake booster vacuum supply hose to the dash panel and position the vacuum line
out of the way.
13. Remove the bolt (3) that secures the A/C liquid and suction line assembly (4) to the A/C evaporator (6).
14. Disconnect the A/C liquid and suction line assembly from the A/C evaporator and remove and discard the dual-plane seals.
15. Install plugs in, or tape over the opened refrigerant line fittings and the evaporator ports.
16. Remove the A/C liquid and suction line assembly from the engine compartment.
Installation
INSTALLATION
CAUTION: Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant
oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.
CAUTION: The A/C liquid line must be replaced if an internal failure of the A/C compressor has occurred. Failure to replace the A/C liquid
line can prevent the A/C system from operating as designed and can cause serious A/C compressor damage.
NOTE: When replacing multiple A/C system components, refer to the Refrigerant Oil Capacities chart to determine how much oil should be added to
the refrigerant system.
NOTE: Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is opened. Failure to replace the rubber O-ring
seals and metal gaskets could result in a refrigerant system leak.
NOTE: LHD model shown in illustrations. RHD model similar.
1. Position the A/C liquid and suction line assembly (4) into the engine compartment.
