Grand Cherokee 2WD V6-3.7L (2008)
Front Door Exterior Handle: Service and Repair
Front Door Exterior Handle - Installation
INSTALLATION

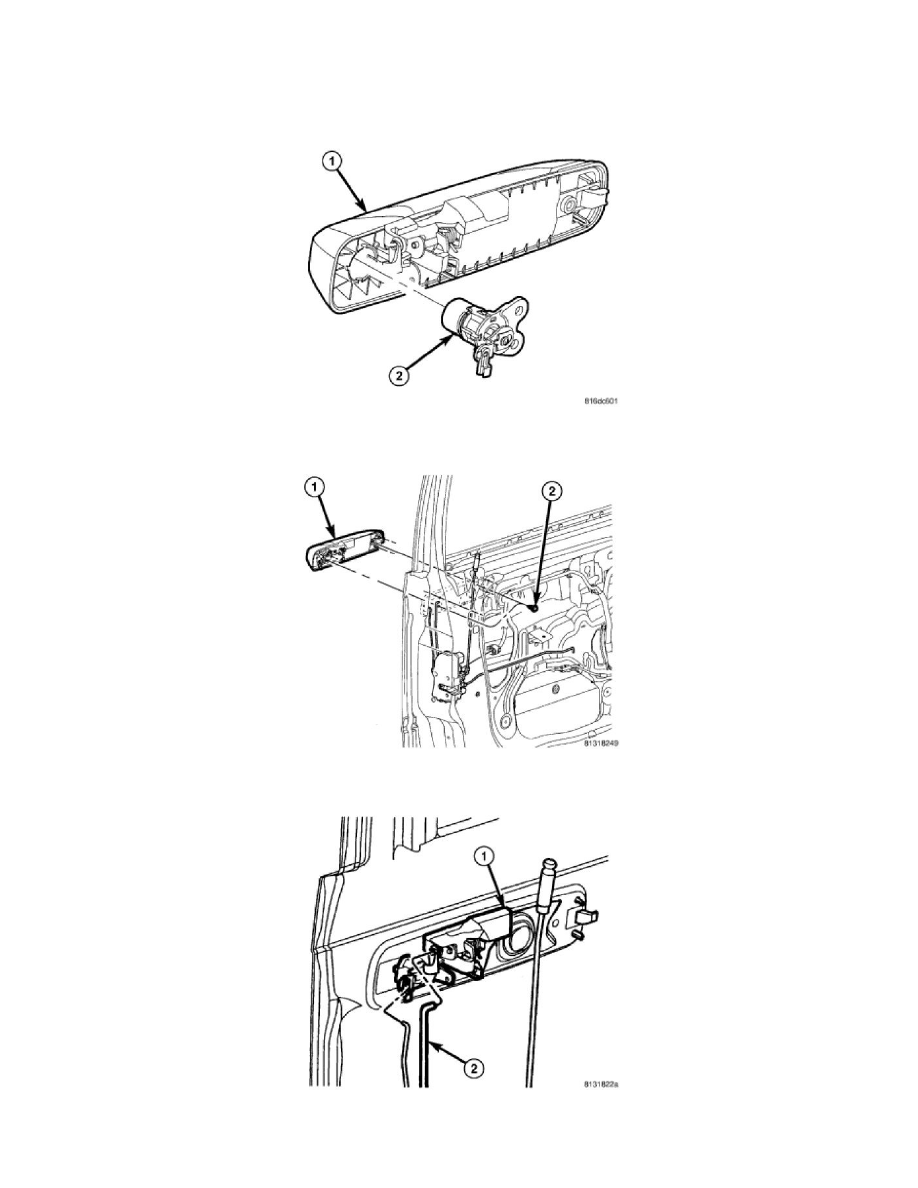

1. If removed, install the lock cylinder into the driver side front exterior handle See: Locks/Door Locks/Door Lock Cylinder/Service and
Repair/Installation.
2. Position the exterior handle (1) to the mounting hole on the outside of the front door.
3. Install the three bolts (2) that secure that exterior handle to the door. Tighten the bolts to 7 Nm (60 in. lbs.).
4. Connect the actuator rods (2) to the front exterior handle (1).
