Grand Cherokee 2WD V8-4.7L VIN J (2004)
Camshaft Bearing: Specifications

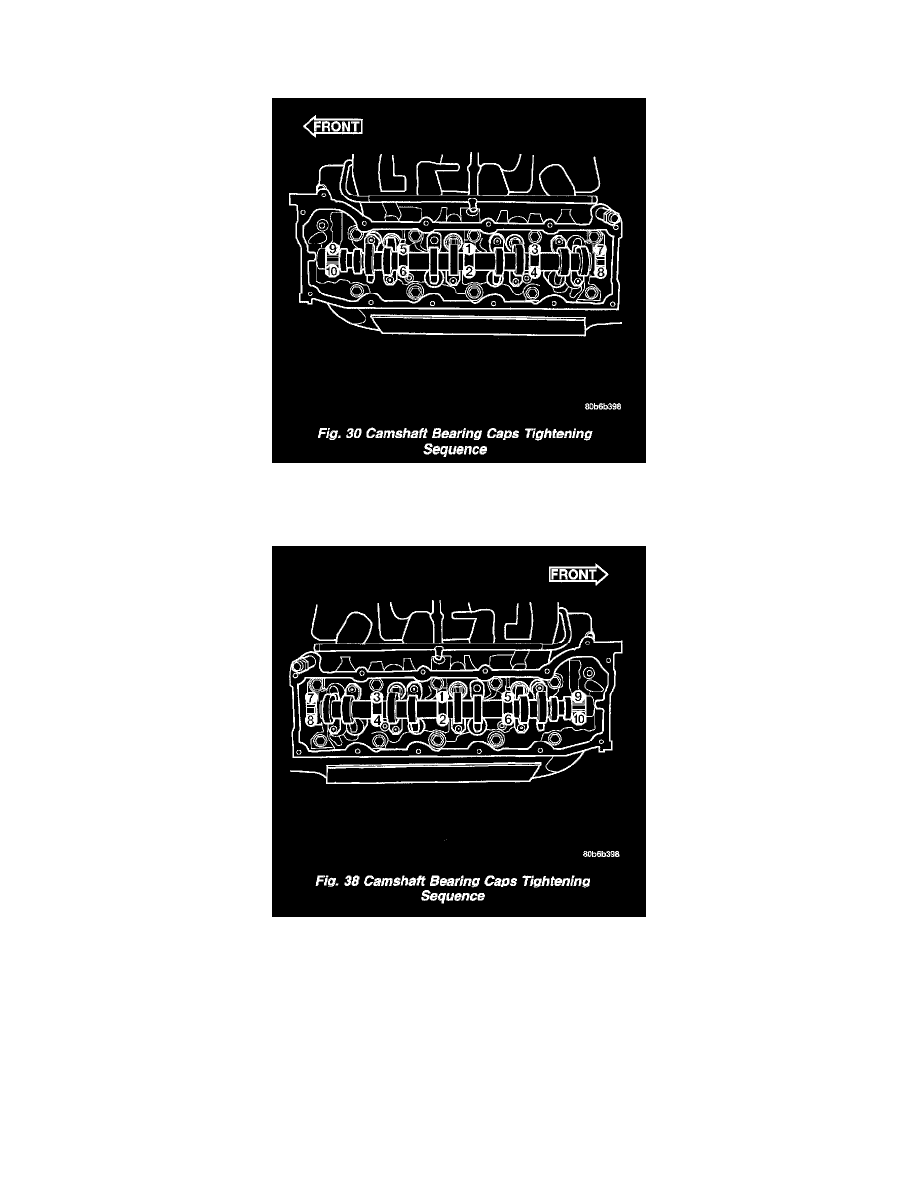

Camshaft Bearing Cap Torque & Sequence
Camshaft Bearing Caps - Left Side
Left Side Camshaft
Camshaft Bearing Caps - Right Side
Right Side Camshaft
Tighten the bearing cap bolts in 1/2 turn increments following the sequence shown to 11 Nm (100 in. lbs.).
