Grand Cherokee 2WD V8-4.7L VIN J (2004)
Rear Door Window Regulator: Procedures
REMOVAL
1. Remove the waterdam.

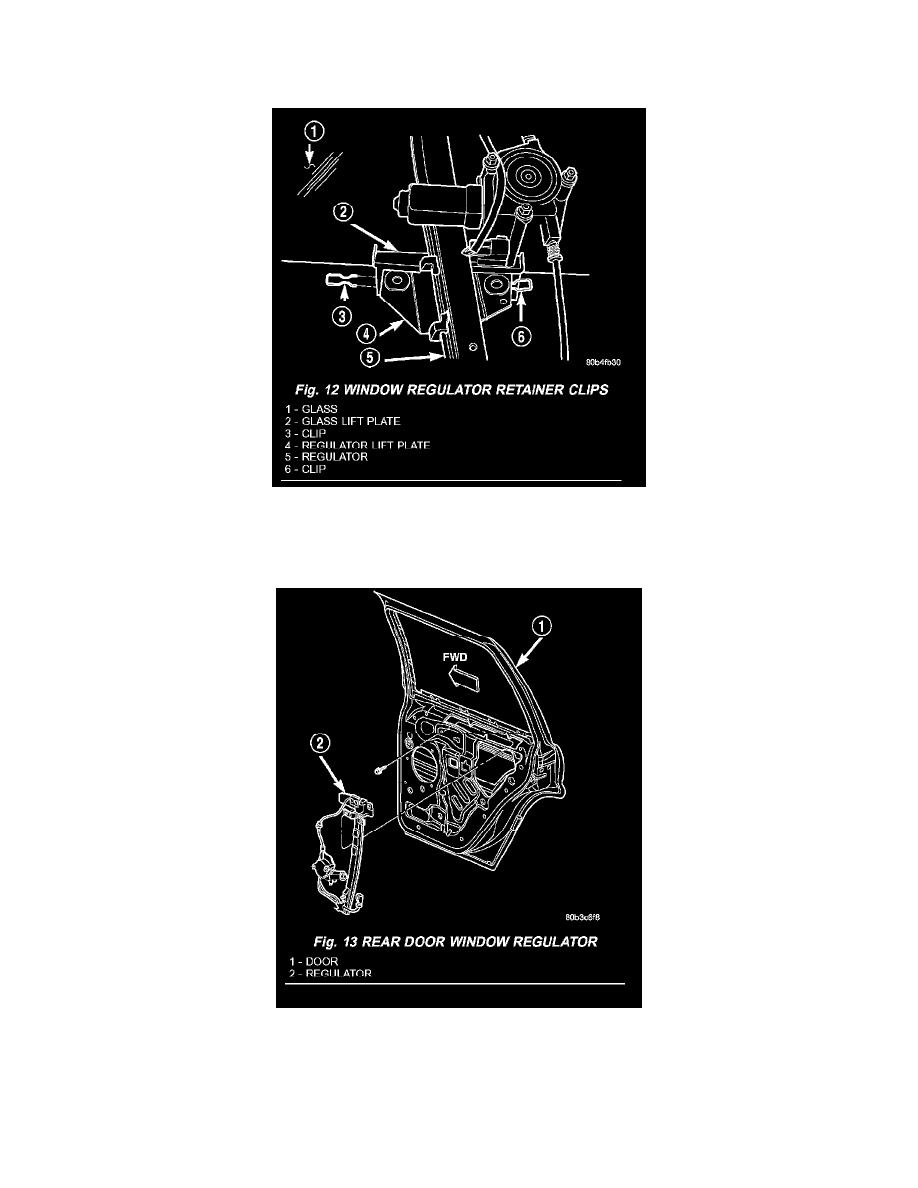

Window Regulator Retainer Clips
2. Using a long flat blade or hook type tool, disengage clips attaching glass liftplate to the regulator.
3. Secure glass in up position using a wood wedge, tape, or equivalent.
Rear Door Window Regulator
4. Remove the fasteners retaining the regulator.
5. Disconnect the electrical harness from the regulator pigtail.
6. Remove the regulator.
INSTALLATION
