Page 1

background image

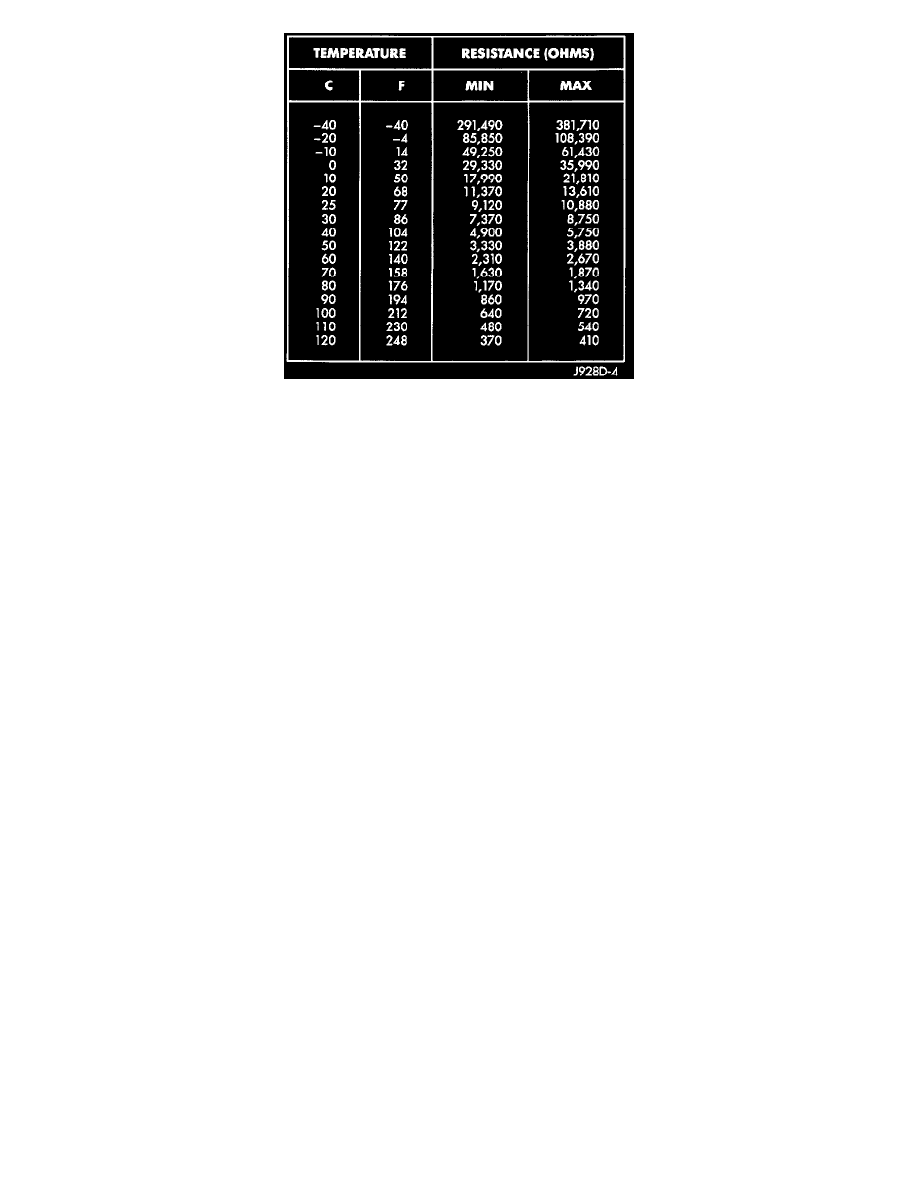

CTS & IAT Resistance Chart Verses Temperature

Engine, Cooling and Exhaust
Cooling System
Engine - Coolant Temperature Sensor/Switch
Coolant Temperature Sensor/Switch (For Computer)
Component Information
Specifications
Electrical Specifications
