Grand Cherokee 4WD L6-4.0L VIN S (1997)
Ignition Lock: Service and Repair
NOTE: The ignition key must be in the key cylinder for cylinder removal.
KEY CYLINDER REMOVAL
1. Disconnect negative cable from battery
2. If equipped with tilt column, remove tilt lever by turning it counterclockwise.

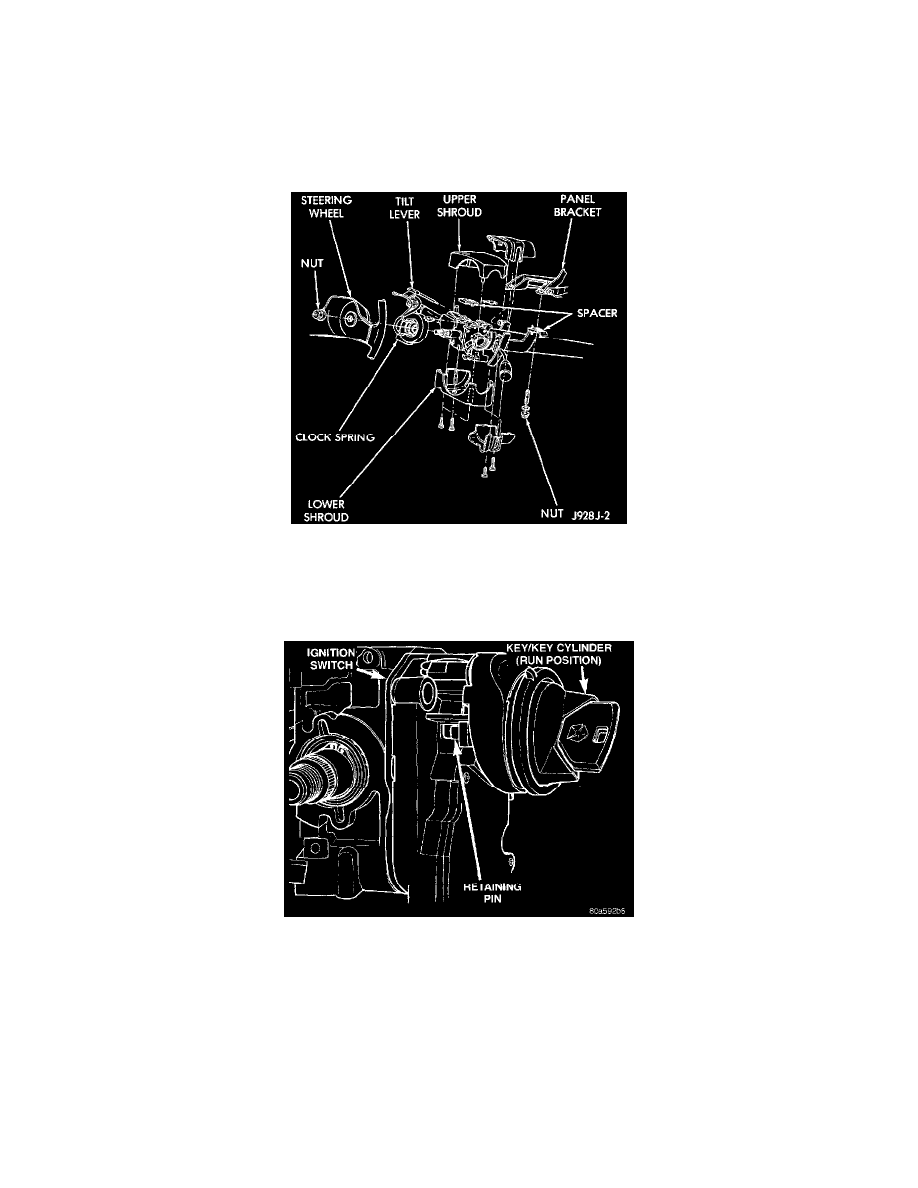

Fig. 43 Shroud R&R - Typical
3. Remove upper and lower covers (shrouds) from steering column.
4. If equipped with automatic transmission, place shifter in PARK position.
Fig. 44 Retaining Pin
5. A retaining pin is located at side of key cylinder assembly
a. Rotate key to RUN position.
b. Press in on retaining pin while pulling key cylinder from ignition switch.
KEY CYLINDER INSTALLATION
NOTE: Installing ignition key lock cylinder only, follow steps 2, 3 and 4. Also follow steps 12 through 18.
