Grand Cherokee 4WD V6-3.0L DSL Turbo (2008)
Fuel Filter: Service and Repair
Fuel Filter / Water Separator
Removal
REMOVAL
WARNING: No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from
contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.
1. Disconnect negative battery cable.

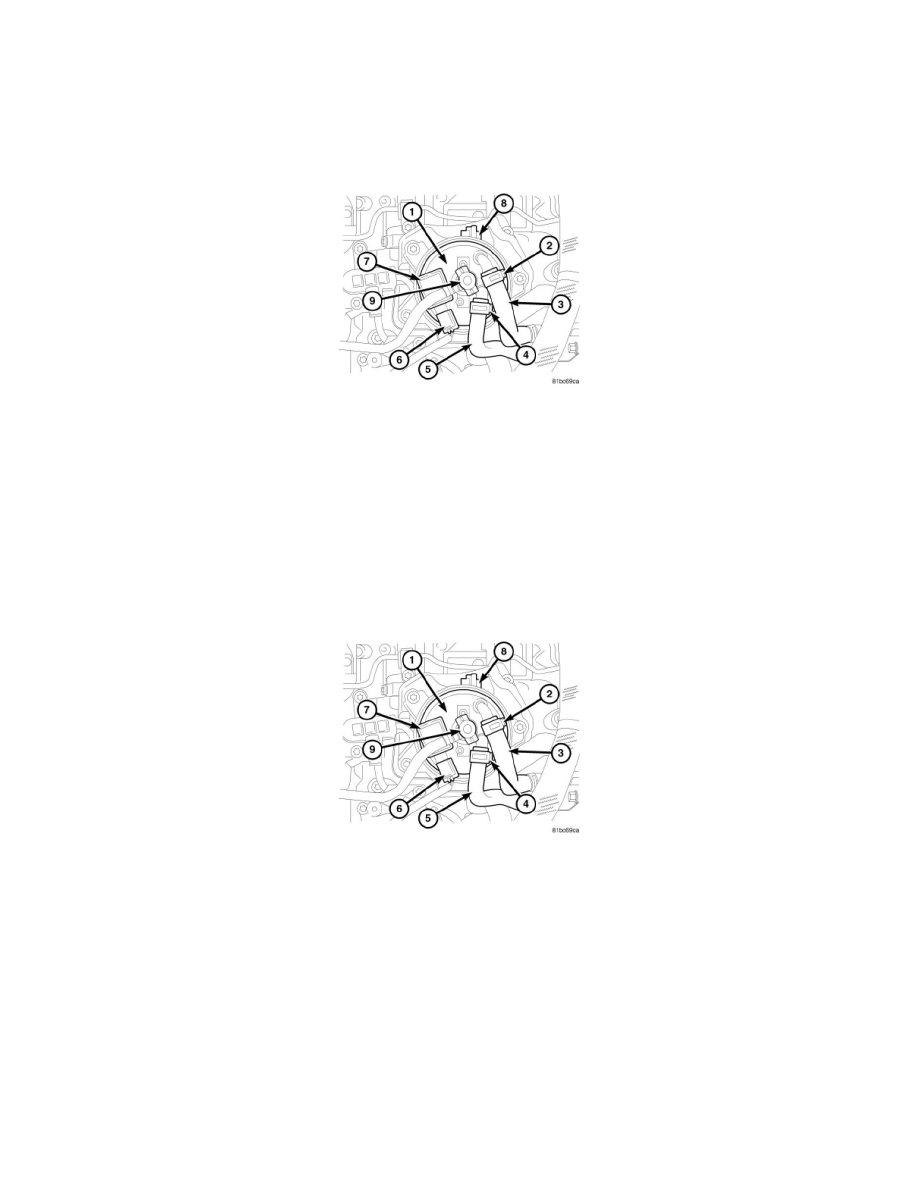

2. Insert a suitable hose into the fuel drain port (9), turn drain port counterclockwise and drain fuel into a suitable and appropriately marked
container.
3. Disconnect fuel feed (5) and return lines (3) at fuel filter and set aside.
4. Disconnect WIF sensor electrical connector at fuel filter.
5. Remove fuel filter retaining bracket bolt and remove fuel filter (1).
Installation
INSTALLATION
WARNING: No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from
contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.
NOTE: Assure fuel filter drain port is closed.
1. Connect WIF sensor electrical connector (6).
2. Position fuel filter (1) in bracket and tighten retaining bolt to 5 Nm (44 in. lbs.).
3. Connect fuel feed (5) and return lines (3).
4. Connect negative battery cable.
5. Start engine and inspect for leaks.
