Grand Cherokee 4WD V6-3.7L (2009)
Rear Door Latch: Service and Repair
Rear Door Latch - Removal
REMOVAL

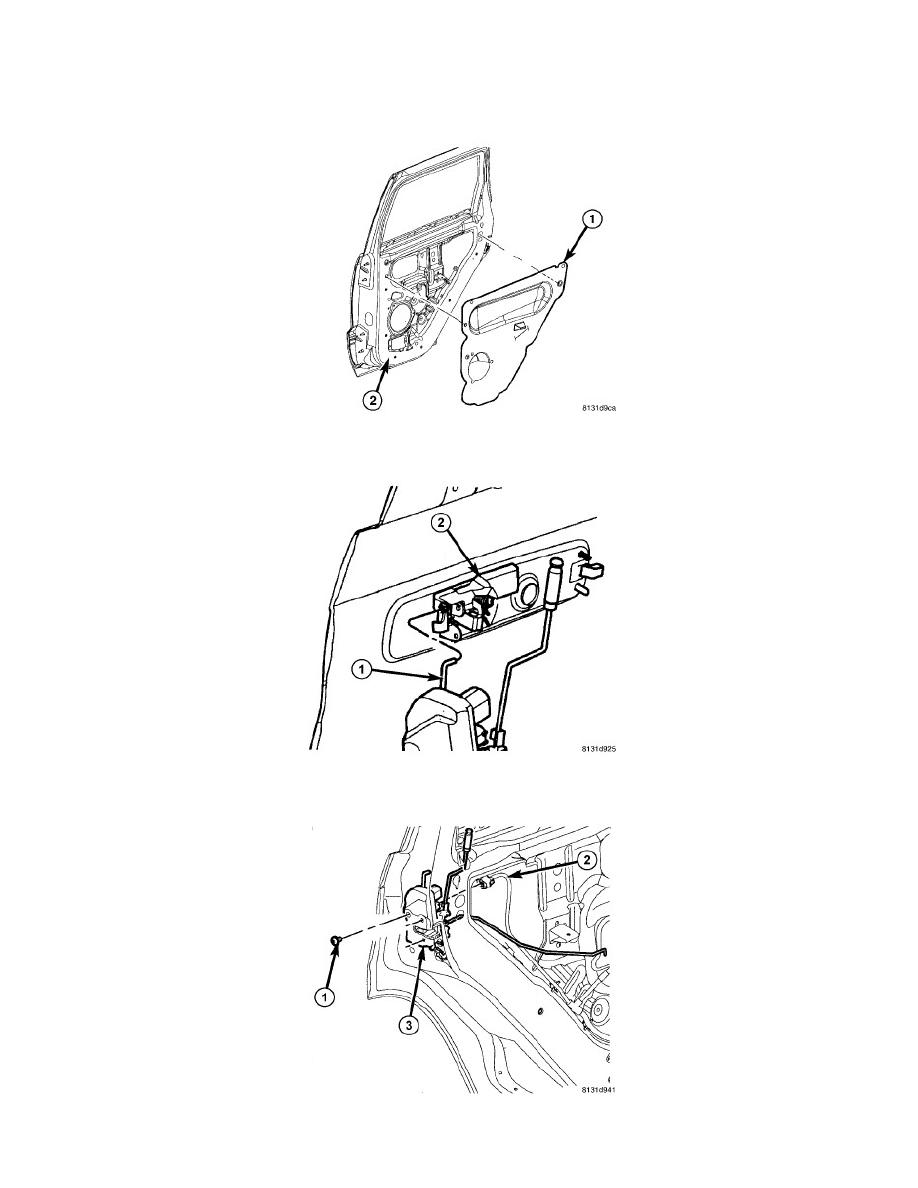

1. Remove the watershied (1) as necessary to gain access to the latch. See: Rear Door Panel/Service and Repair/WaterShield - Removal
2. Disconnect the actuator rod (1) from the exterior handle (2).
3. Disconnect the interior handle actuator rod from the rear door latch (3) and remove the rod.
