Power Mirror Switch: Service and Repair
Power Mirror Switch - Removal

REMOVAL

1. Disconnect and isolate the battery negative cable.

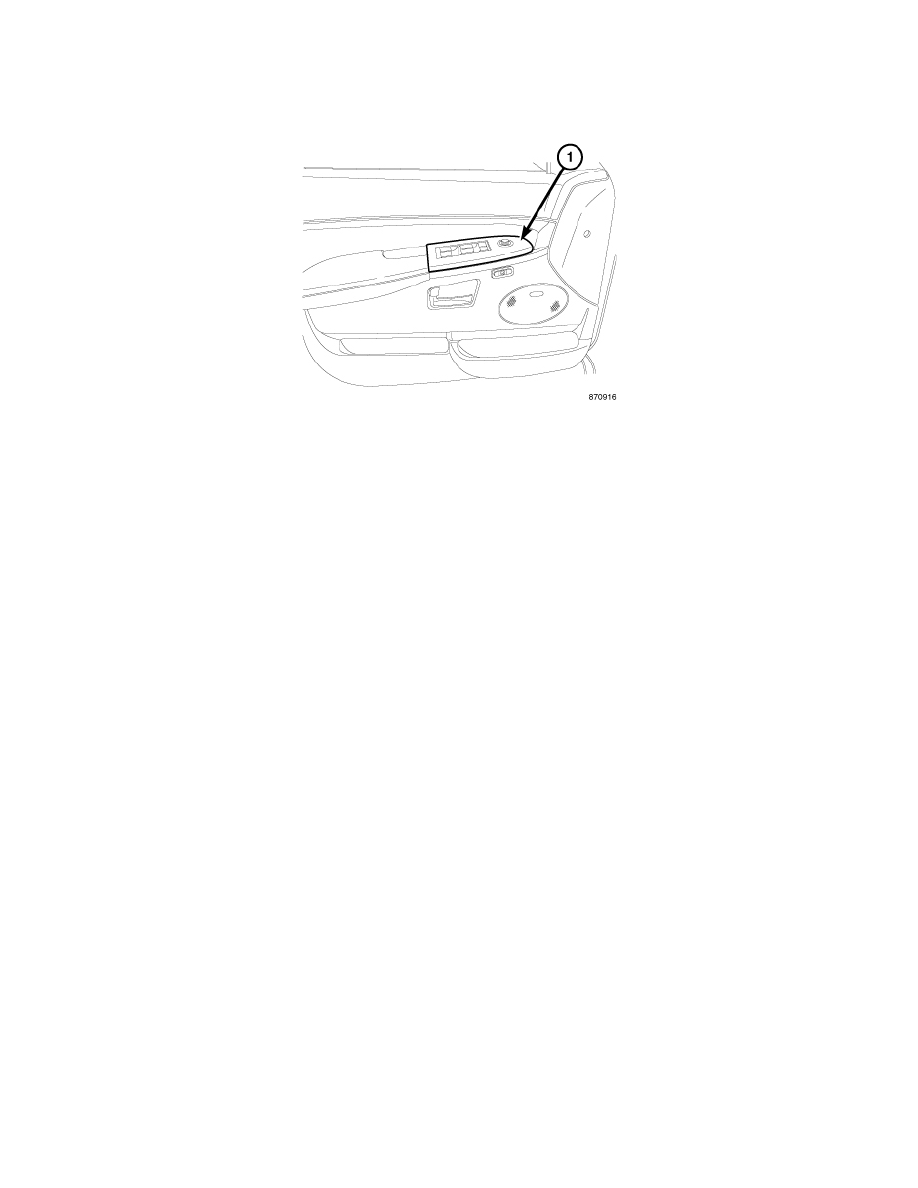

2. Using a trim stick or equivalent, start at the rear of the switch trim housing and pry up to remove from the door trim panel.
3. Disconnect electrical connectors.
4. Remove the power mirror switch from the door trim panel by twisting switch, and pushing through the hole.
