Grand Cherokee 4WD V6-3.7L (2009)
Headlamp Bulb: Service and Repair
Front Lamp Unit - Removal
BOOT - HEADLAMP BULB
WARNING: To avoid serious or fatal injury when working on the High Intensity Discharge (HID) headlamp system, be certain to take the
proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is
a risk of death caused by contact with high voltage used in the HID headlamps. There is a risk of explosion or fire caused by highly
flammable materials in the vicinity of damaged HID lighting elements. There is a risk of injury caused by exposure to Ultra Violet
(UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters
produced by bursting HID lighting elements. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic
salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are
under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on HID headlamps. Wear
insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the
working area.
CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb
life will result.
1. Remove the front lamp unit from the front of the vehicle. See: .
2. Remove the low or high beam headlamp bulb from the front lamp unit housing. See: .

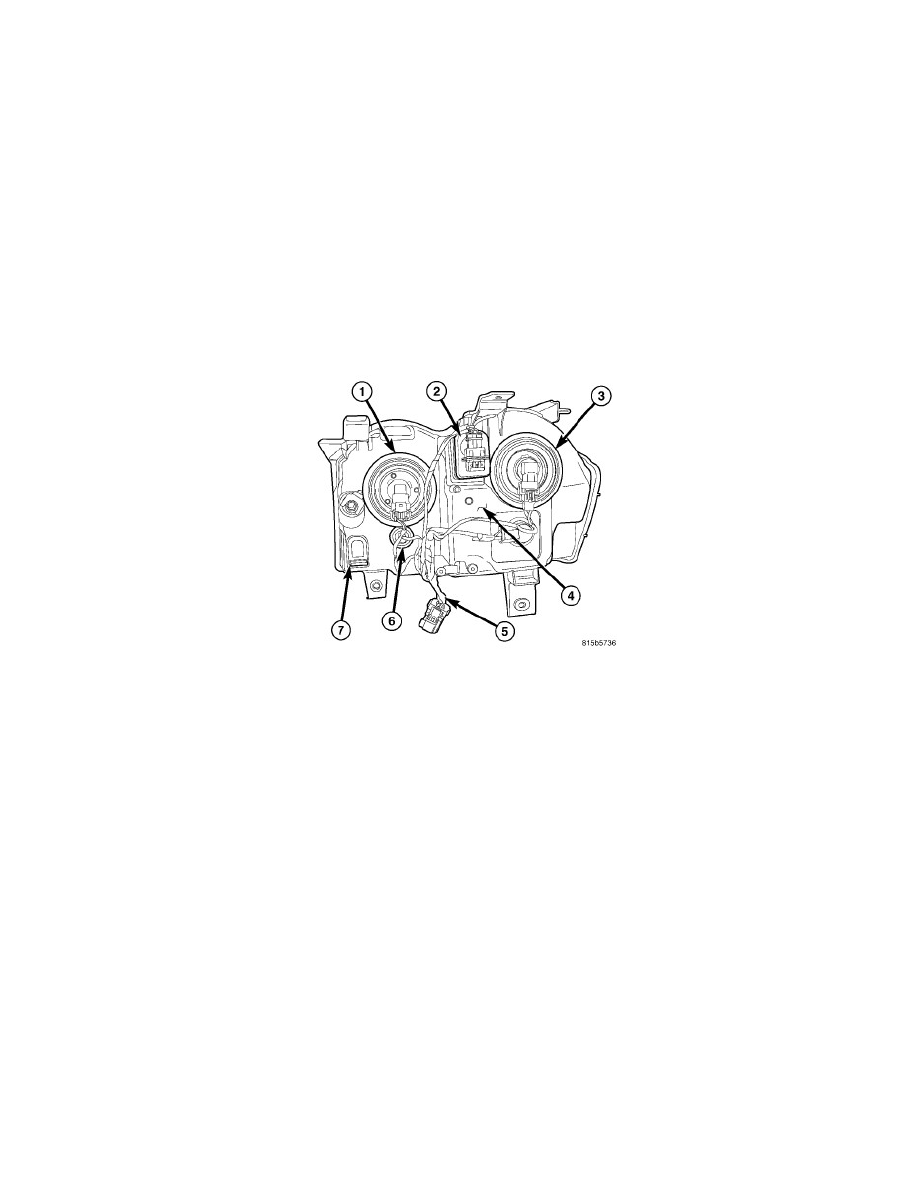

3. Pull the outer circumference of the low beam boot (3) or high beam boot (1) up and away as necessary to disengage it from the boot collar
formation on the back of the lamp housing.
4. Pull the inner circumference of the low beam boot or high beam boot up and away as necessary to disengage it from the bulb collar formation on
the back of the lamp reflector.
5. Remove the boot from the back of the front lamp.
