Solenoid: Diagrams
Front Differential Solenoid (Front Cradle) 2 Way

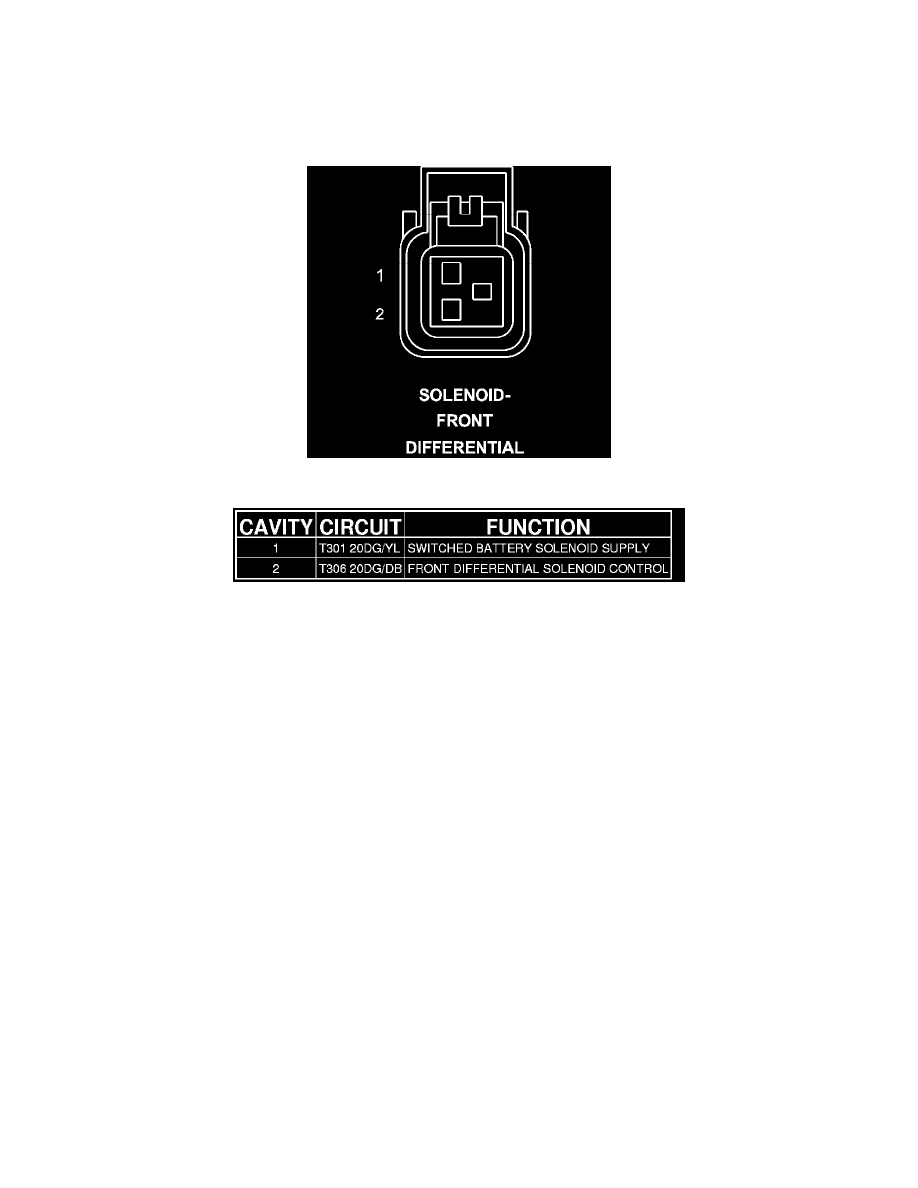

Connector - (FRONT CRADLE) 2 WAY

SOLENOID-FRONT DIFFERENTIAL - (FRONT CRADLE) 2 WAY
